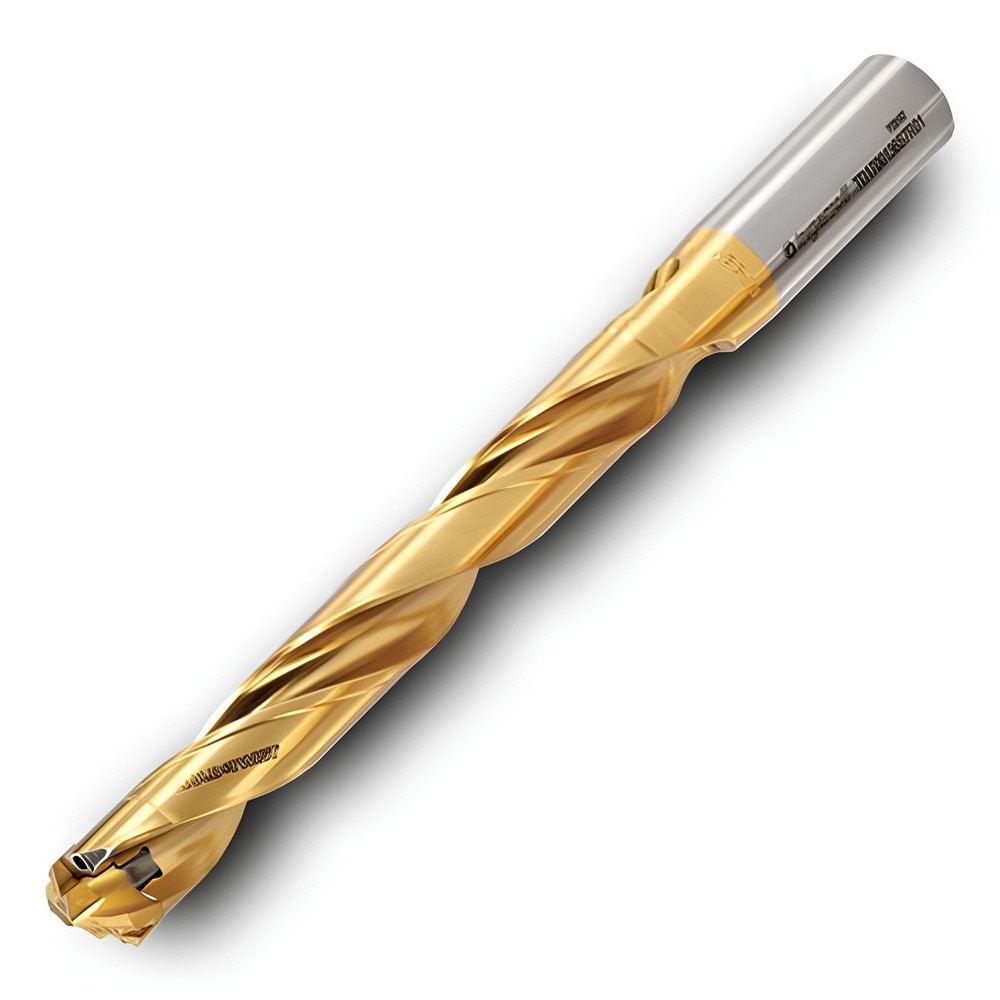

Brand: Ingersoll Cutting Tools / Part #: 3204322
Item #: 95034872
Brand: Ingersoll Cutting Tools
Model #: 3204322
Product Specifications
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.40 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 114.50 |
| Shank Type | Cylindrical |
| Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Insert Seat Size | 14 |
| Shank Diameter (mm) | 16.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TPA; TNA; TPC; TMA; TKA; TPF |
| Compatible Insert Size Code | 14.. |
| Overall Length (mm) | 172.1000 |
| Series | TD |
| Toolholder Style | TD |
| Flute Length (mm) | 172.10 |
| Body Length | 172.100 |
| Shank Length (mm) | 48.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Coating Classification | PVD |
