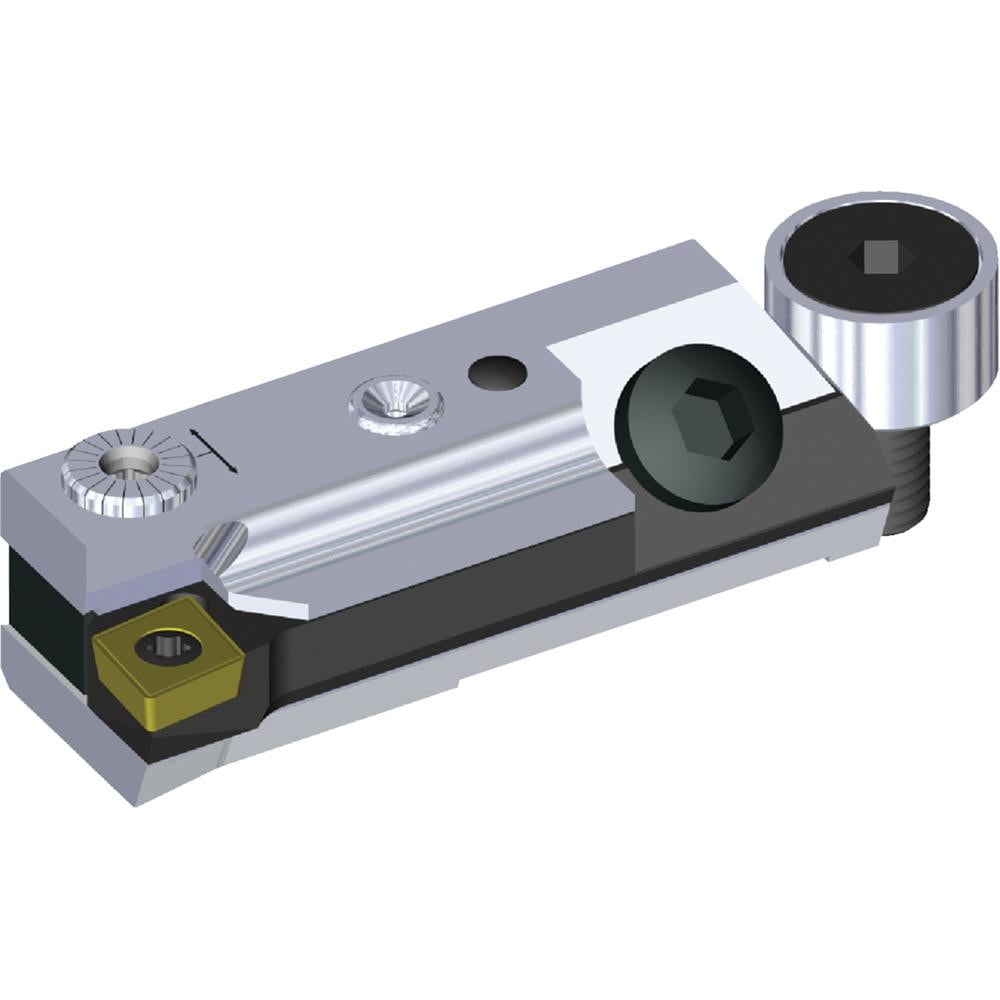

Brand: Widia / Part #: 3860909
Item #: 97182117
Brand: Widia
Model #: 3860909
Product Specifications
| Minimum Bore Diameter (mm) | 200.00 |
| Maximum Bore Diameter (mm) | 520.00 |
| Toolholder Style | SCLCR |
| Compatible Insert Style | CC.. |
| Compatible Insert Size Code | 0602.. |
| Cutting Direction | Right Hand |
| Boring Head Compatibility | Rotaflex |
| Adapter Size | SMAC200 |
| Mount Bars | Angular |
| Series | MA |
| Toolholder Application | Fine Machining; Boring |
| Overall Length (mm) | 45.50 |
| Lead Angle | 95 degree |
| Back Of Bar To Cutting Edge | 16.00 mm |
