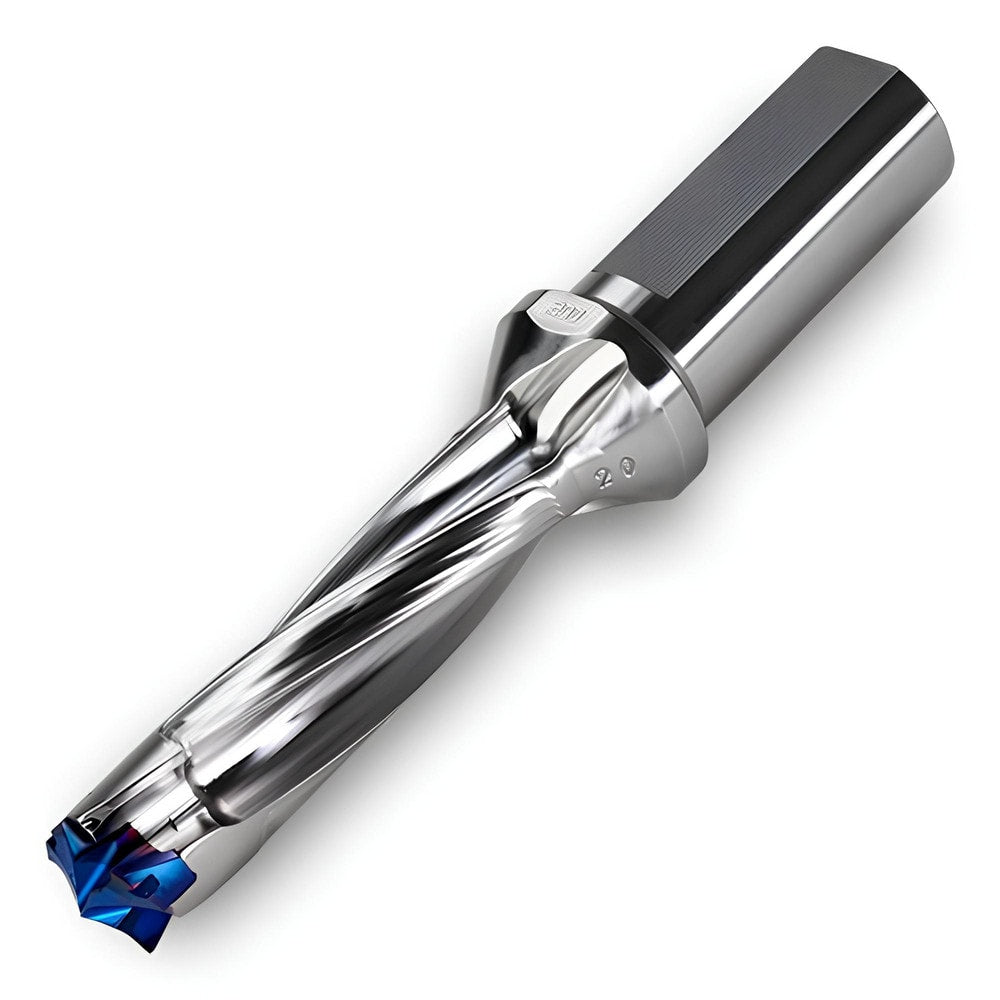

Brand: Ingersoll Cutting Tools / Part #: 6210745
Item #: 28960912
Brand: Ingersoll Cutting Tools
Model #: 6210745
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (Decimal Inch) | 0.7047 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.1700 |
| Shank Type | Flatted |
| Insert Style | FPC |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Seat Size | 17 |
| Tool Material | Steel |
| Compatible Insert Style | FPC |
| Compatible Insert Size Code | 1700; 1750 |
| Overall Length (Decimal Inch) | 4.9100 |
| Series | FD |
| Toolholder Style | FD |
| Flute Length (Decimal Inch) | 2.9400 |
| Body Length (Decimal Inch) | 2.9400 |
| Shank Length (Decimal Inch) | 1.9700 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
