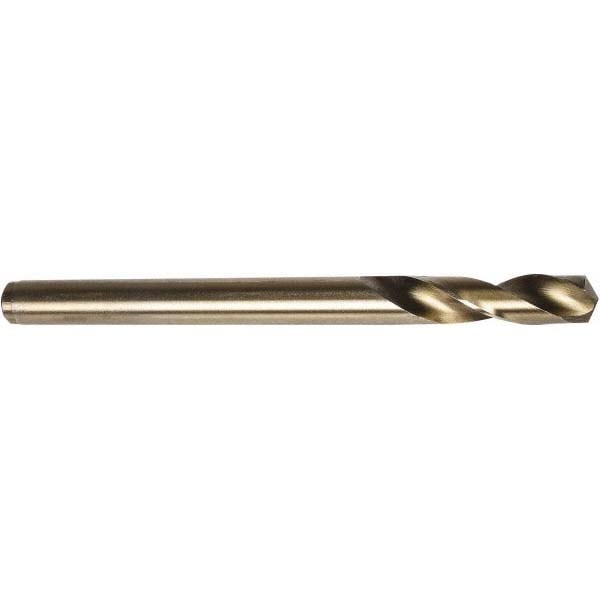

Brand: Precision Twist Drill / Part #: 5999826
Item #: 78569753
Brand: Precision Twist Drill
Model #: 5999826
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0995 |
| Drill Bit Size (Wire) | #39 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Oxide/Gold; Gold Finish |
| Drill Point Angle (Degrees) | 135 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Flute Length (Inch) | 13/16 |
| Shank Diameter (Decimal Inch) | 0.0995 |
| Overall Length (Inch) | 2-3/8 |
| Series | R89CO |
| Tool Application | Centering |
| Flute Length x Diamter Ratio | 3xD |
| Flute By Diameter Ratio | 3xD |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | NAS 907 |
| Specification Number | NAS 907 |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | NAS; ANSI |
