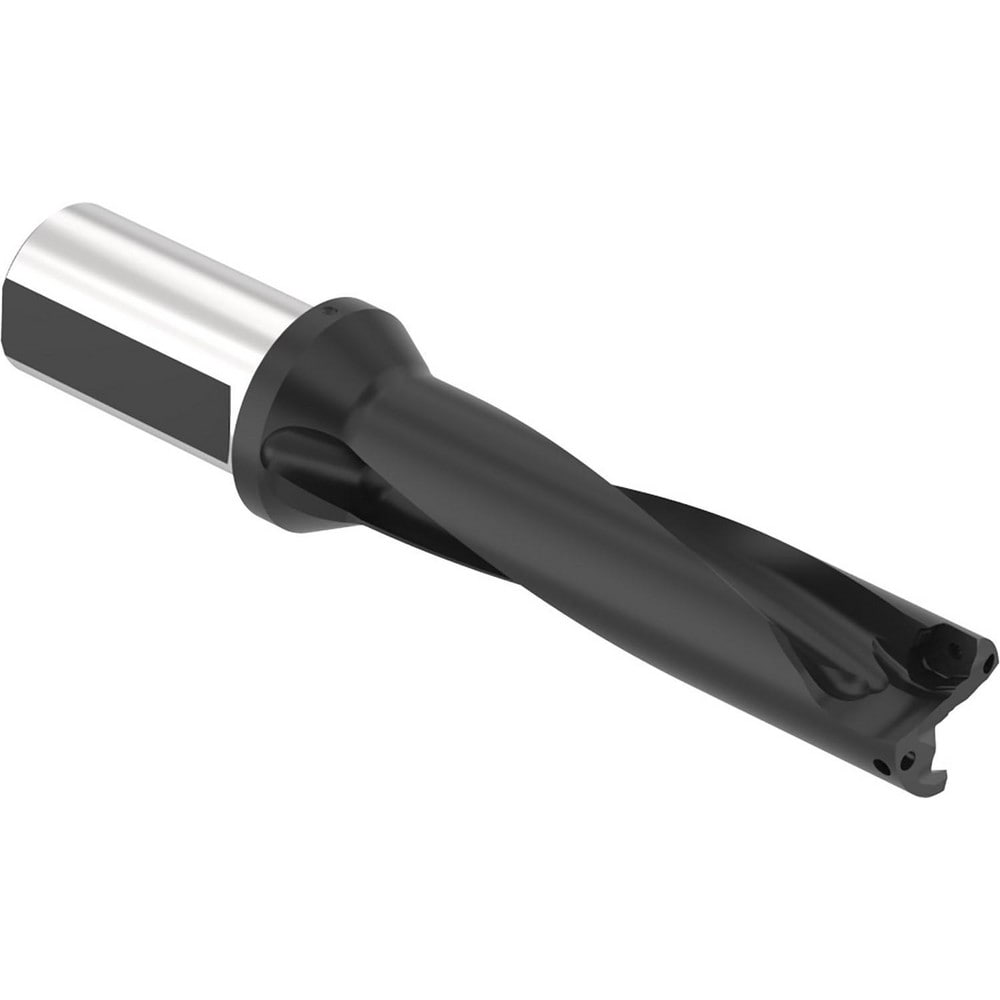

Brand: Allied Machine and Engineering / Part #: D4092650M-125F
Item #: 99386237
Brand: Allied Machine and Engineering
Model #: D4092650M-125F
Product Specifications
| Drill Style | D409 |
| Maximum Drill Diameter (mm) | 26.50 |
| Drill Diameter (mm) | 26.50 |
| Maximum Drill Depth (Decimal Inch) | 4.1732 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | IC |
| Compatible Insert Size Code | 09 |
| Drill Depth by Diameter Ratio | 4xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (Decimal Inch) | 7.3897 |
| Series | 4TEX |
| Flute Length (Decimal Inch) | 5.0669 |
| Shank Length (Decimal Inch) | 2.3230 |
| Shank Length (mm) | 59.000 |
| Coolant Through | Yes |
