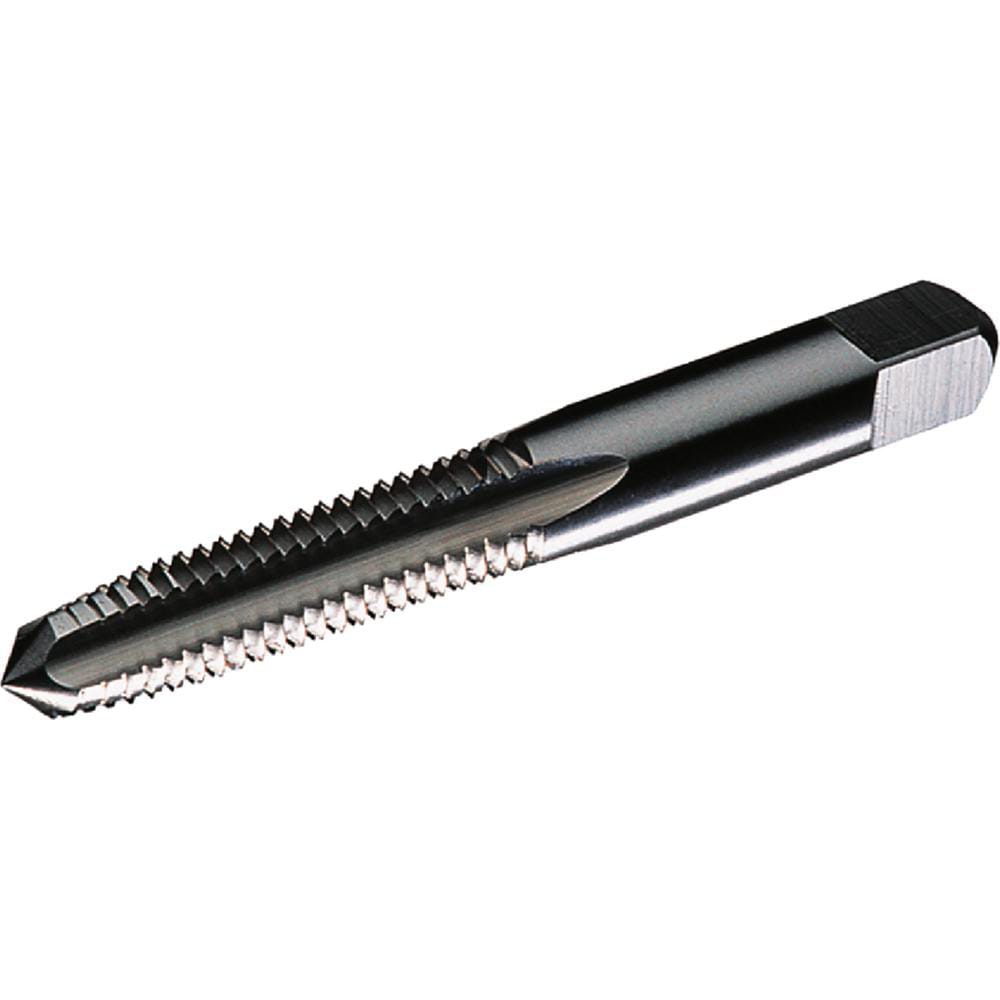

Brand: Widia / Part #: 2749609
Item #: 99789752
Brand: Widia
Model #: 2749609
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 3/8-24 |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 24 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UNF |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Overall Length (Decimal Inch) | 2.9375 |
| Thread Length (Decimal Inch) | 1.2500 |
| Thread Depth (Decimal Inch) | 1.2500 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Length (mm) | 11.11 |
| Square Size (Decimal Inch) | 0.2860 |
| Series | 5303 |
| Shank Length (Decimal Inch) | 1.6875 |
