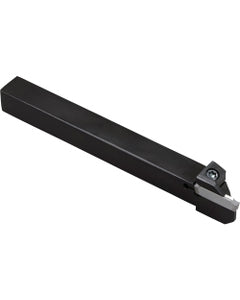

KGDL 1212F2, External Grooving Toolholder
Item #: KY96THT03749
Brand: Kyocera Precision Tools
Model #: THT03749
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 2 mm |
| Overall Length (OAL) | 85 mm |
| Cutting Width Maximum (CWX) | 3 mm |
| Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 12 mm |
| Coolant Supply Property (CSP) | External |
| Shank Height (H) | 12 mm |
| Application | | Cut-Off | Ext. Grooving | Small Parts Machining | |
| Shank Width (B) | 12 mm |
| Body Material | Steel |
| Functional Width (WF) | 11.2 mm |
| Series/List # | KGD |
| Functional Length (LF) | 85 mm |
| Measurement Type | Metric |
| Head Length (LH) | 19.5 mm |
| Shank Length (LS) | 65.5 mm |
