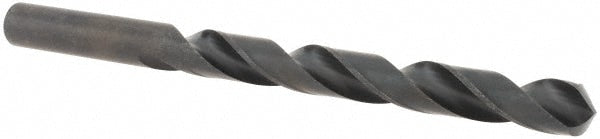

Brand: Cle-Line / Part #: C22745
Item #: 76644004
Brand: Cle-Line
Model #: C22745
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Drill Bit Size (Inch) | 3/8 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Oxide |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 3-5/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 127.00 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Length (mm) | 92.08 |
| Flute Length (Decimal Inch) | 3.6250 |
| Series | 1899 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (mm) | 9.53 |
| Shank Length (mm) | 34.93 |
| Shank Length (Decimal Inch) | 1.3752 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Standards | DIN 338; ASME B94.11M |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
