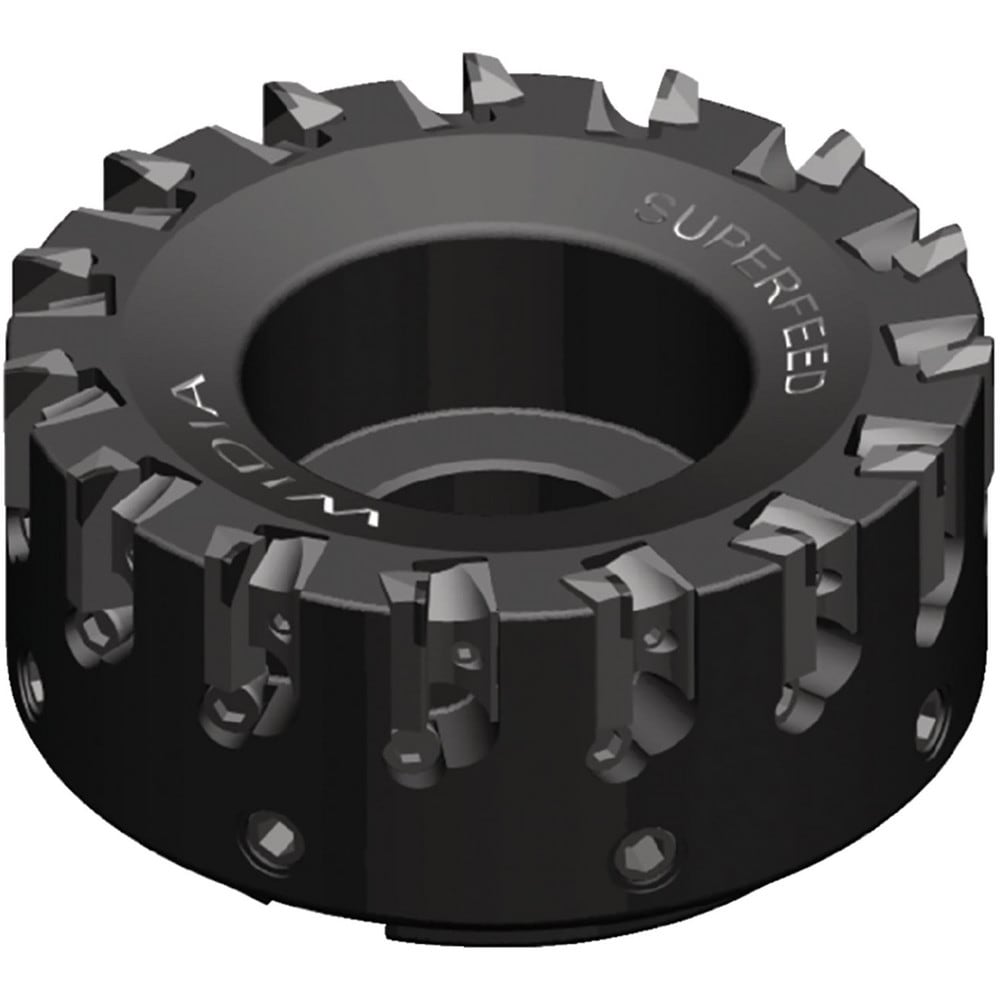

Brand: Widia / Part #: 5363040
Item #: 09978644
Brand: Widia
Model #: 5363040
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | SDR1000 |
| Maximum Ramping Angle | 0 |
| Cutter Style | Superfeed |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Lead Angle | 90 |
| Rake | Positive |
| Series | Superfeed |
| Maximum Body Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Keyway Width (mm) | 9.78 |
| Hub Diameter (Decimal Inch) | 2.3800 |
| Maximum RPM | 20000.000 |
| Tool Application | Facing; Milling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Number of Adjustable Pockets | 6 |
| ISO Number | SF02506RH |
| Complete Insert Compatibility | SDR1000 |
| Toolholder Material | Aluminum |
| Manufacturers Catalog Number | SF02506RH |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
