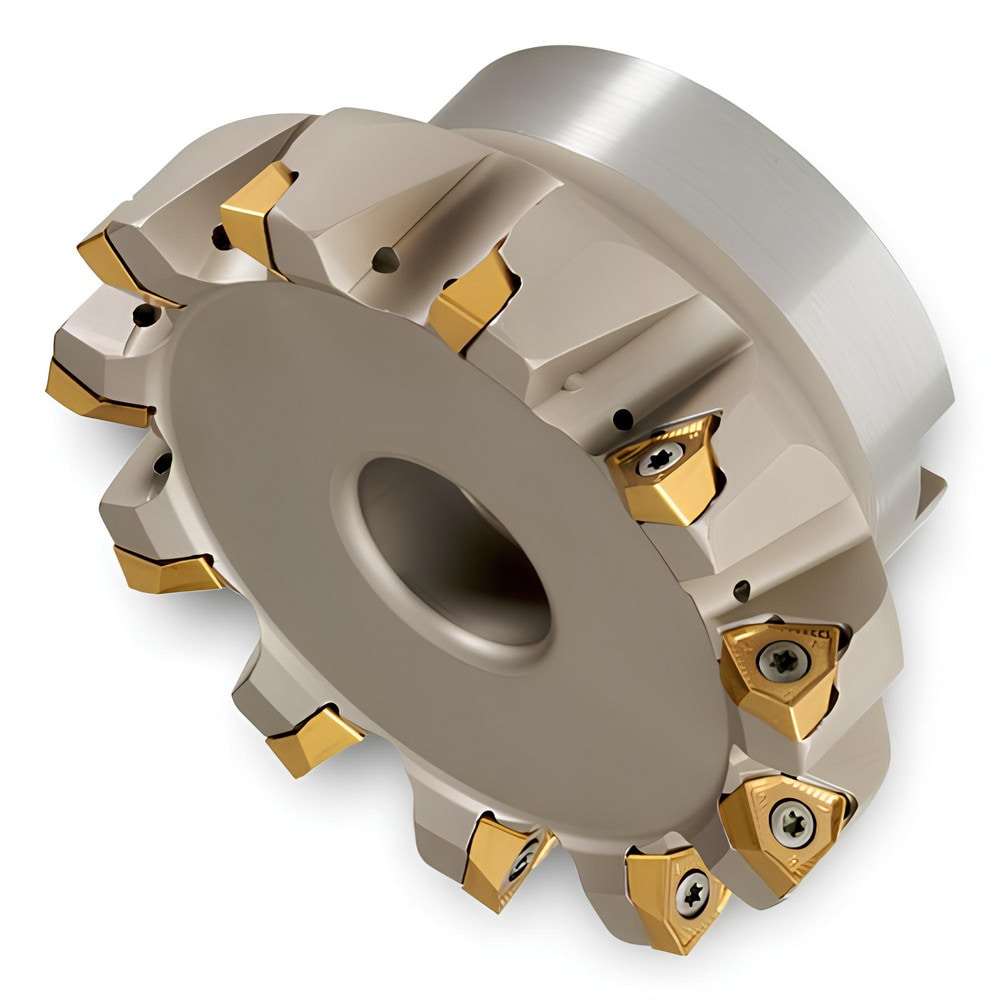

Brand: Ingersoll Cutting Tools / Part #: 2912842
Item #: 96676259
Brand: Ingersoll Cutting Tools
Model #: 2912842
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
| Minimum Cutting Diameter (Inch) | 5 |
| Minimum Cutting Diameter (mm) | 127.00 |
| Maximum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Cutting Diameter (mm) | 127.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3620 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 1306 |
| Cutter Style | DJ5P |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Positive |
| Series | DJ5P |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Keyway Width (Inch) | 5/8 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Pitch Type | Normal |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.3620 |
| Complete Insert Compatibility | WNGU1306? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DJ5P-50R10 |
| Coolant Through | No |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 12 |
