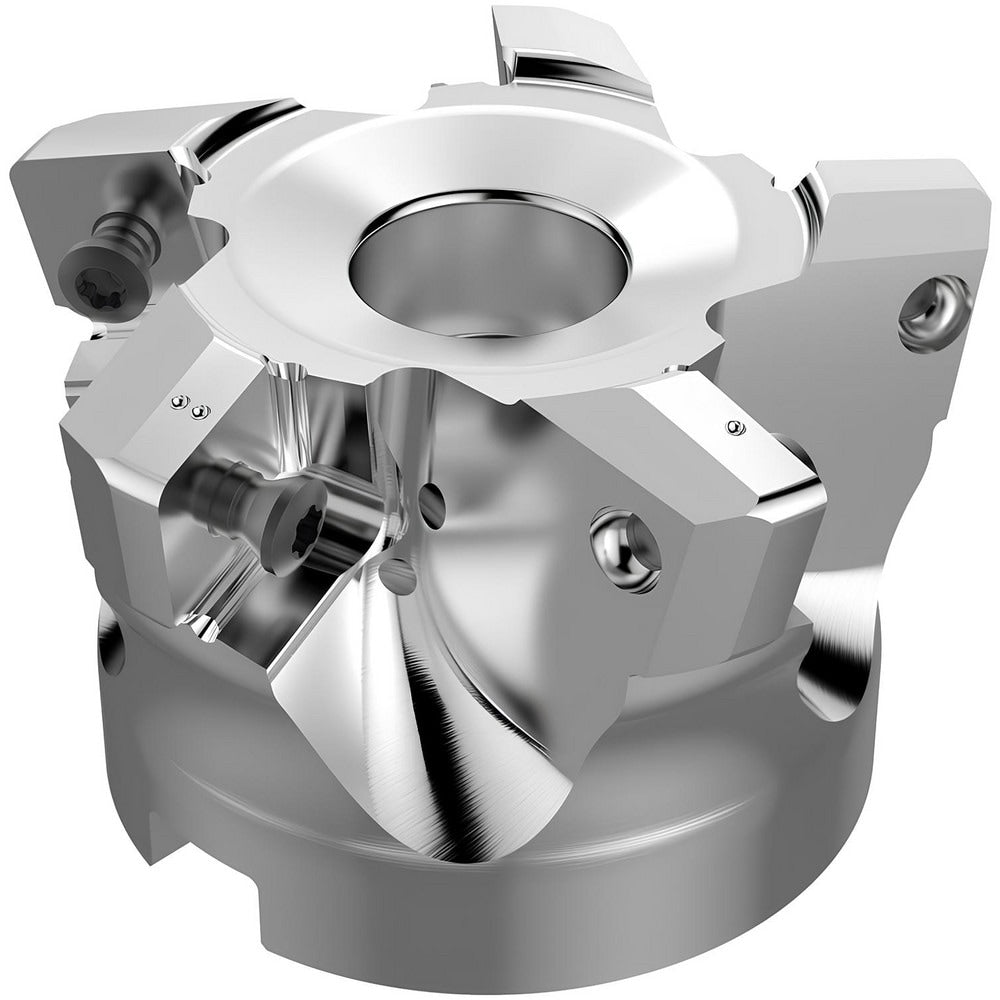

Brand: Seco / Part #: 10128670
Item #: 61223996
Brand: Seco
Model #: 10128670
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.8460 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Arbor Hole Diameter (Decimal Inch) | 0.0980 |
| Compatible Insert Size Code | 1806 |
| Maximum Ramping Angle | 2.6 |
| Cutter Style | R220.21 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220.21 |
| Keyway Width (mm) | 9.70 |
| Overall Height (Inch) | 2 |
| Maximum RPM | 5100.000 |
| Complete Insert Compatibility | SPKT1806 |
| Manufacturers Catalog Number | R220.21-03.00-SP18.5A |
| Style | R220.21 |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
