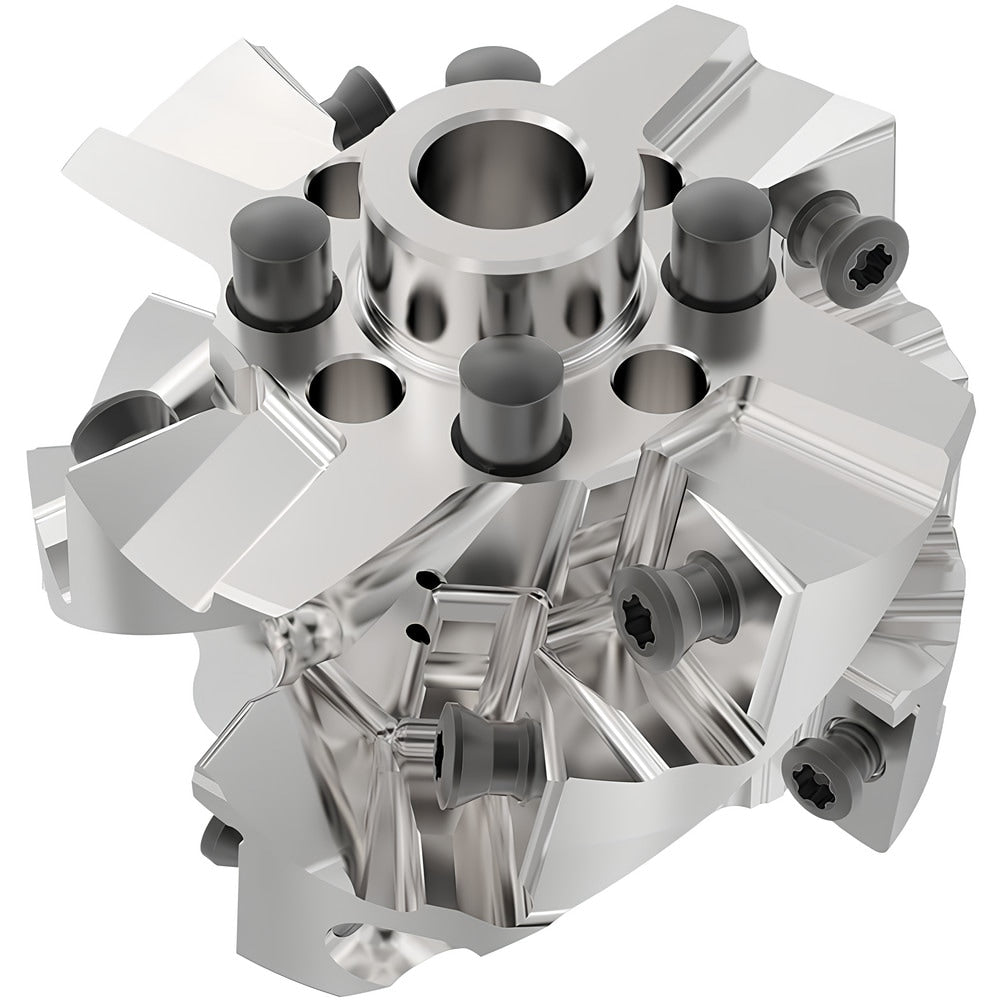

Brand: Seco / Part #: 10127529
Item #: 67251975
Brand: Seco
Model #: 10127529
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.4409 |
| Arbor Hole Diameter (Decimal Inch) | 0.0000 |
| Compatible Insert Size Code | 16 |
| Maximum Ramping Angle | 1.7 |
| Cutter Style | R220.82 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R217/220.82 |
| Overall Height (Decimal Inch) | 1.4370 |
| Keyway Width (Decimal Inch) | 0.0000 |
| Hub Diameter (Decimal Inch) | 0.0000 |
| Pitch Type | Close |
| Maximum RPM | 7400.000 |
| Tool Application | Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| Cutting Edge Length (Decimal Inch) | 0.6300 |
| Minimum Insert Radius (Inch) | 1/64 |
| ISO Number | R220.82-RE02.50-1.42-SNXO16.4A |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.82-RE02.50-1.42-SNXO16.4A |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 4 |
