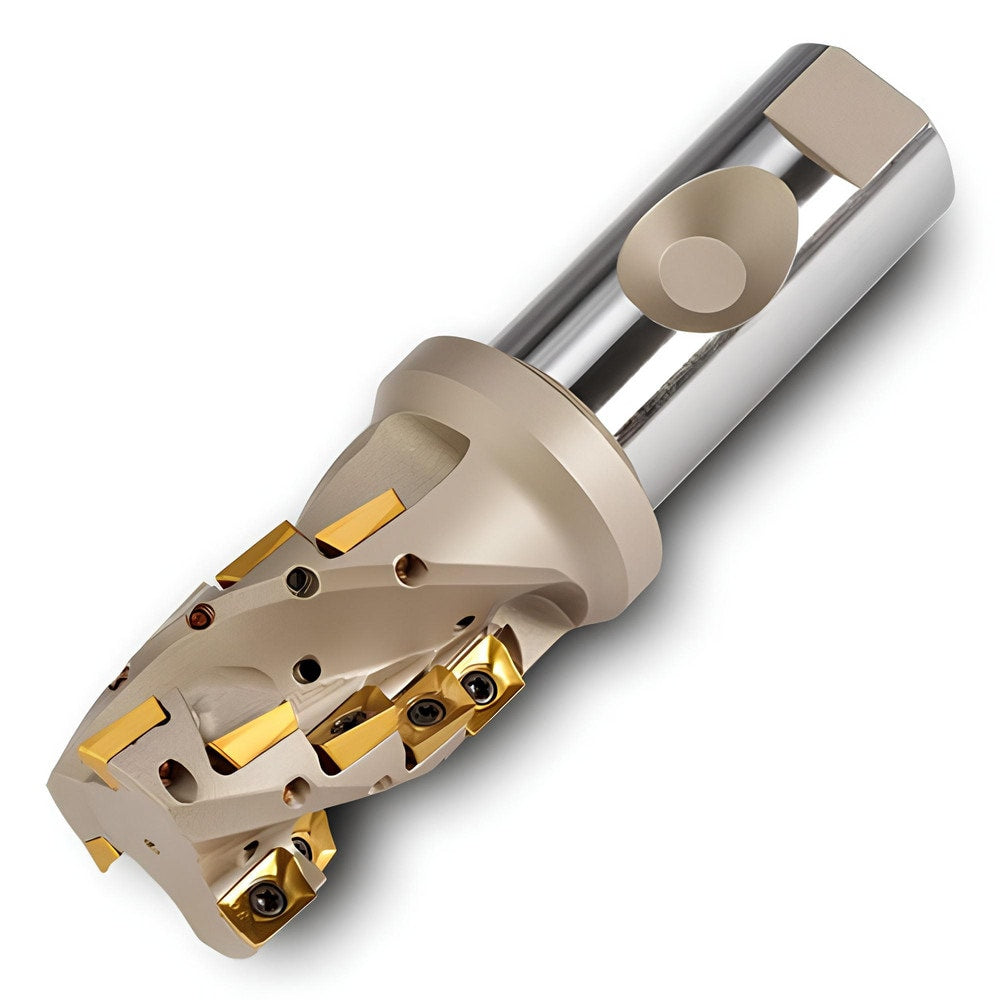

Brand: Ingersoll Cutting Tools / Part #: 2928851
Item #: 20738175
Brand: Ingersoll Cutting Tools
Model #: 2928851
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 57.40 |
| Maximum Depth of Cut (Decimal Inch) | 2.2600 |
| Cutter Style | 22J3P |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 4 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 127.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Tool Material | Steel |
| Series | 22J3P |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Inch) | 2-1/4 |
| Shank Length (Decimal Inch) | 2.2500 |
| Head Length (Inch) | 2-3/4 |
| Head Length (Decimal Inch) | 2.7500 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Positive |
| Complete Insert Compatibility | ZOMT09..; BOxT09.. |
| Insert Compatibility | ZOMT09..; BOxT09.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 22J3P-1002780R01 |
| Usable Length (mm) | 60.960 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 2.4000 |
| Number Of Cutter Inserts | 14 |
| Coolant Through | Yes |
