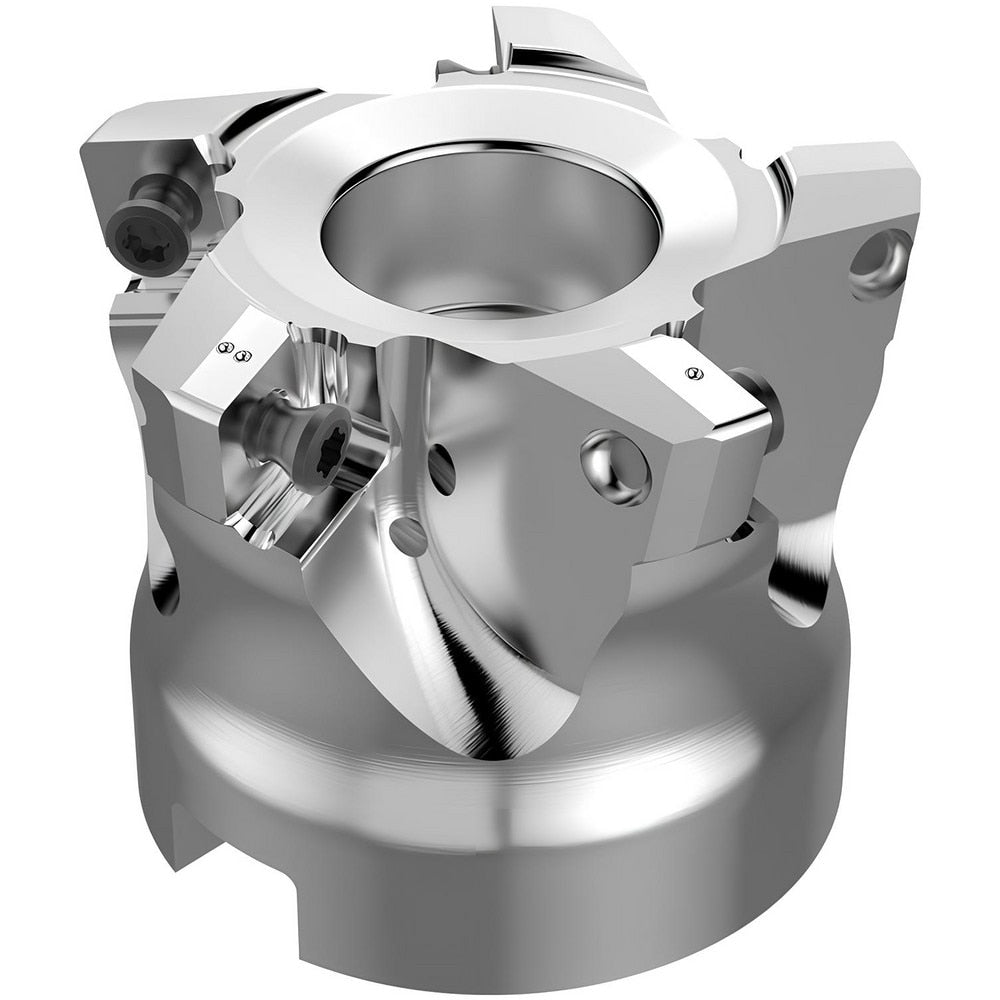

Brand: Seco / Part #: 10128666
Item #: 28892339
Brand: Seco
Model #: 10128666
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.3580 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0430 |
| Arbor Hole Diameter (Decimal Inch) | 0.0430 |
| Compatible Insert Size Code | 10T3 |
| Maximum Ramping Angle | 1.9 |
| Cutter Style | R220.21 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | R220.21 |
| Keyway Width (mm) | 8.20 |
| Overall Height (Inch) | 1-1/2 |
| Maximum RPM | 17300.000 |
| Complete Insert Compatibility | SPKT10T3 |
| Manufacturers Catalog Number | R220.21-02.00-SP10.5A |
| Style | R220.21 |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Coolant Through | Yes |
