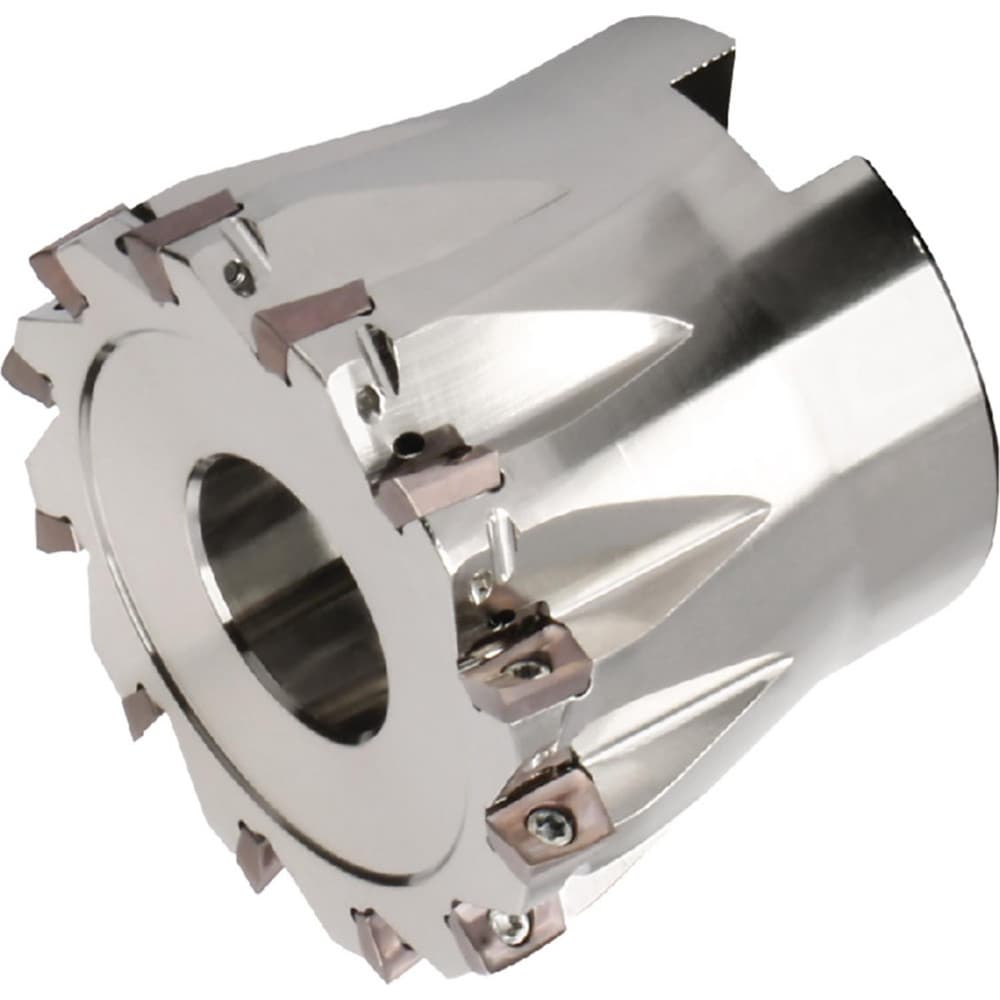

Brand: Widia / Part #: 5710520
Item #: 09792631
Brand: Widia
Model #: 5710520
Product Specifications
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | BDMT0703.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | M680 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -8.300 |
| Series | M6800S |
| Maximum Body Diameter (mm) | 48.77 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Keyway Width (mm) | 10.48 |
| Hub Diameter (mm) | 40.000 |
| Maximum RPM | 27700.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | 12396431000 |
| Complete Insert Compatibility | BDMT0703.. |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 12396431000 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
