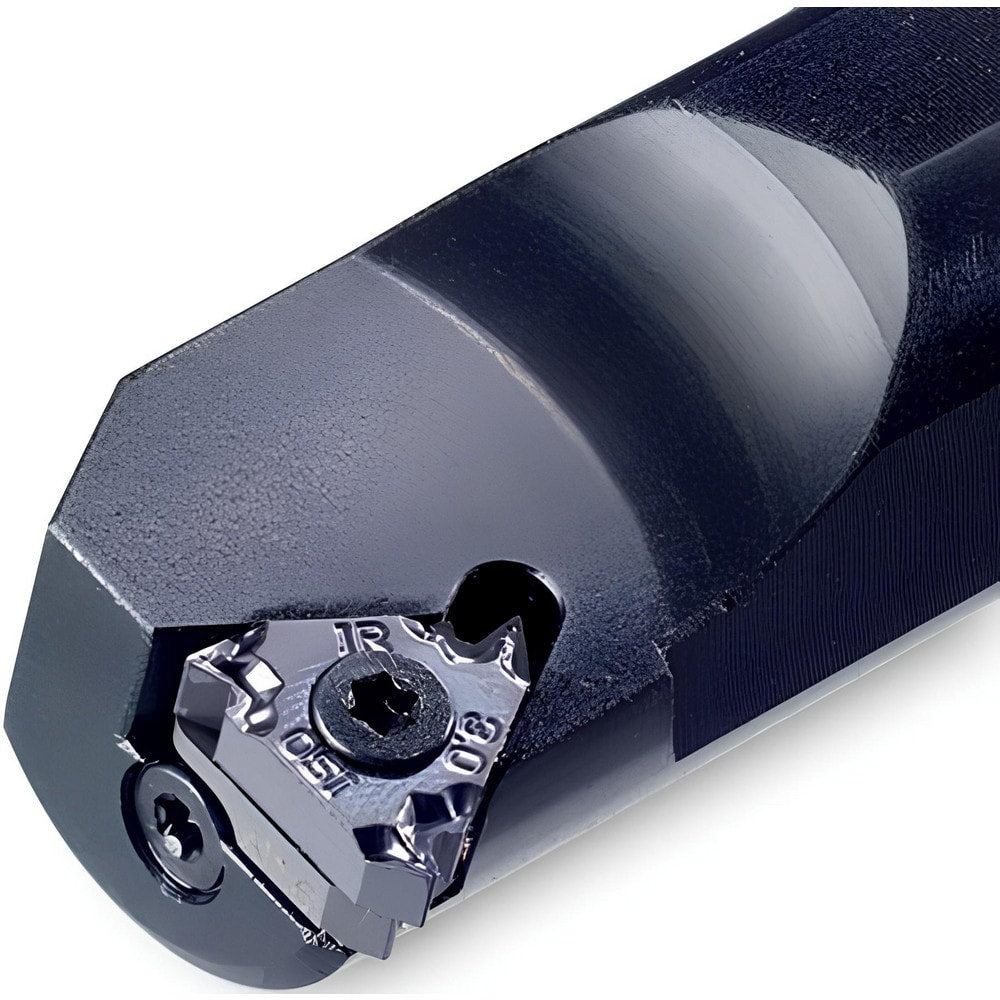

Brand: Ingersoll Cutting Tools / Part #: 3830005
Item #: 67469650
Brand: Ingersoll Cutting Tools
Model #: 3830005
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 11 |
| Shank Width/Diameter (Inch) | 1/2 |
| Toolholder Style | SIL-C |
| Insert Compatibility | 11IL |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Insert Holding Method | Screw |
| Shank Length (Inch) | 7 |
| Overall Length (Inch) | 7 |
| Minimum Bore Diameter (Decimal Inch) | 0.6000 |
| Series | SIL-C |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5800 |
| Center to Cutting Edge (Decimal Inch) | 0.3300 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Carbide |
| Style | SIL-C |
| D -In-- | 0.5000 |
| Coolant Through | Yes |
