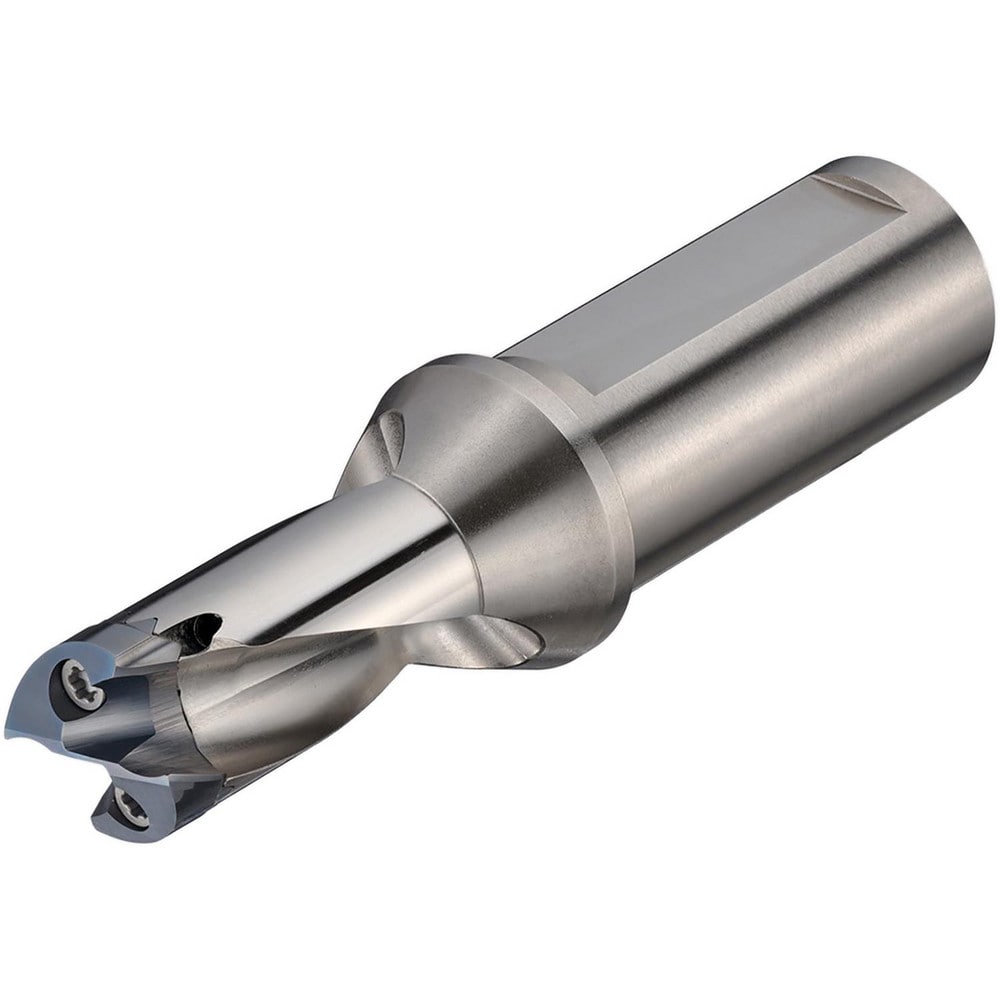

Brand: Sumitomo / Part #: 5L00W2L

Brand: Sumitomo / Part #: 5L00W2L


Item #: 68006071
Brand: Sumitomo
Model #: 5L00W2L

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.8980
Maximum Drill Diameter (Decimal Inch) 0.9370
Drill Depth by Diameter Ratio 1.5xD
Maximum Drill Depth (Decimal Inch) 1.7717
Shank Type Cylindrical
Insert Style MTL; MEL; NAL; MFS; MTL-C
Shank Diameter (Inch) 1
Tool Material Steel
Maximum Drill Depth Range (Decimal Inch) 1.5000 to 2.5000
Compatible Insert Style MTL; MEL; NAL; MFS; MTL-C
Compatible Insert Size Code 0.898 to 0.937"
Overall Length (Decimal Inch) 4.8031
Series SMD
Toolholder Style SMDH
Shank Length (Decimal Inch) 2.2520
Tool Application Holemaking
Cutting Direction Right Hand
Coolant Through Yes
