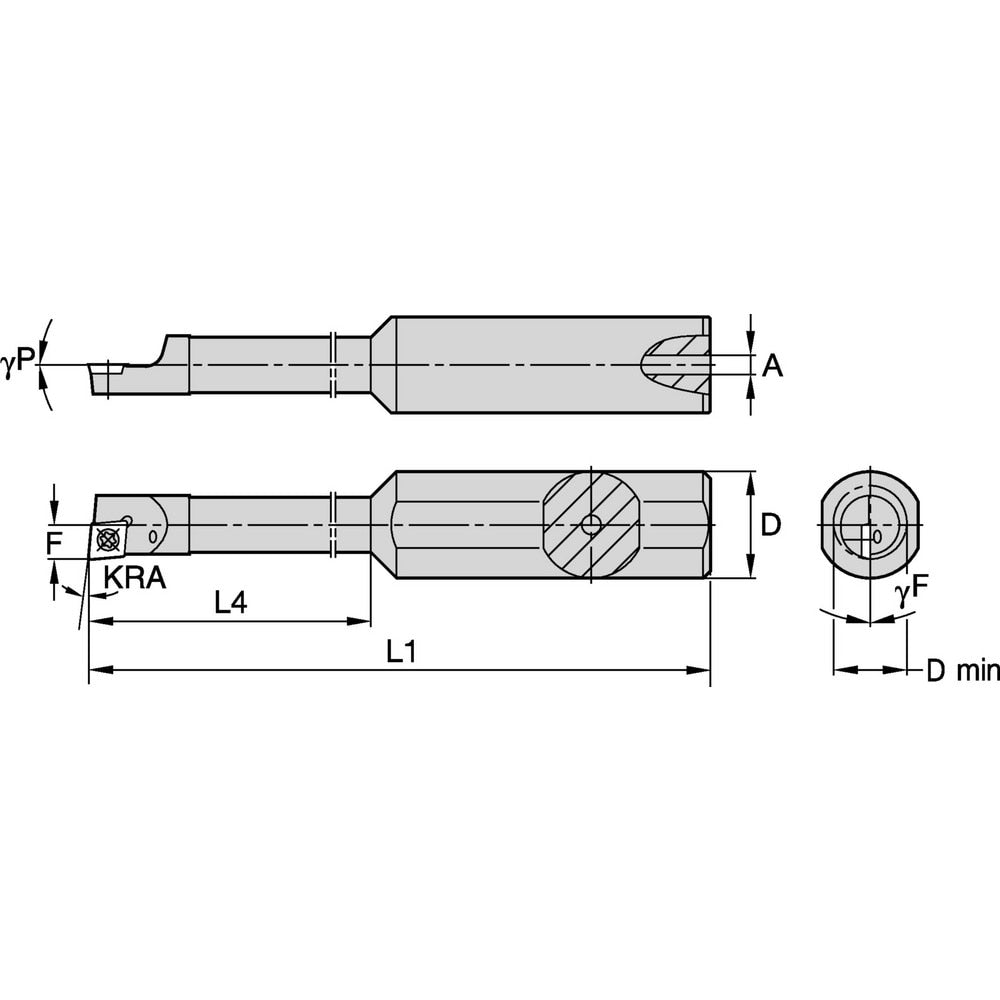

Brand: Widia / Part #: 2832254

Brand: Widia / Part #: 2832254


Item #: 99751695
Brand: Widia
Model #: 2832254

Product Specifications

Minimum Bore Diameter (Decimal Inch) 0.2080
Maximum Bore Depth (Decimal Inch) 1.8750
Maximum Bore Depth (Inch) 1-7/8
Toolholder Style CCBI
Tool Material Carbide
Shank Diameter (Decimal Inch) 0.5000
Hand of Holder Right Hand
Shank Diameter (Inch) 1/2
Overall Length (Decimal Inch) 3.3750
Overall Length (Inch) 3-3/8
Compatible Insert Size Code CD..120605
Insert Holding Method Screw
Compatible Insert Shape Diamond
Insert Included No
Rake Positive
Cutting Direction Right Hand
Rake Angle 0.000
Lead Angle -5.000
Series CCBI STEPPED
Insert Inscribed Circle (Inch) 5/32
Insert Inscribed Circle (Decimal Inch) 0.1563
Insert Inscribed Circle (mm) 3.97
Compatible Insert Thickness (Decimal Inch) 0.0400
Compatible Insert Thickness (mm) 1.02
Multi-use Tool Yes
Cutting Tool Application Boring
Back of Bar to Cutting Edge (Decimal Inch) 0.3540
Center to Cutting Edge (Decimal Inch) 0.1040
Primary Workpiece Material Universal
Multi-Use Application Boring
Number of Inserts Used on Toolholder 1
Neck Diameter (Decimal Inch) 0.1950
Insert Thickness (Decimal Inch) 0.0400
Coolant Hole Diameter (Decimal Inch) 0.1250
Number of Inserts Included in Order 0
Manufacturers Catalog Number CCBI18050018755R
Radial Rake 5
Coolant Through Yes
