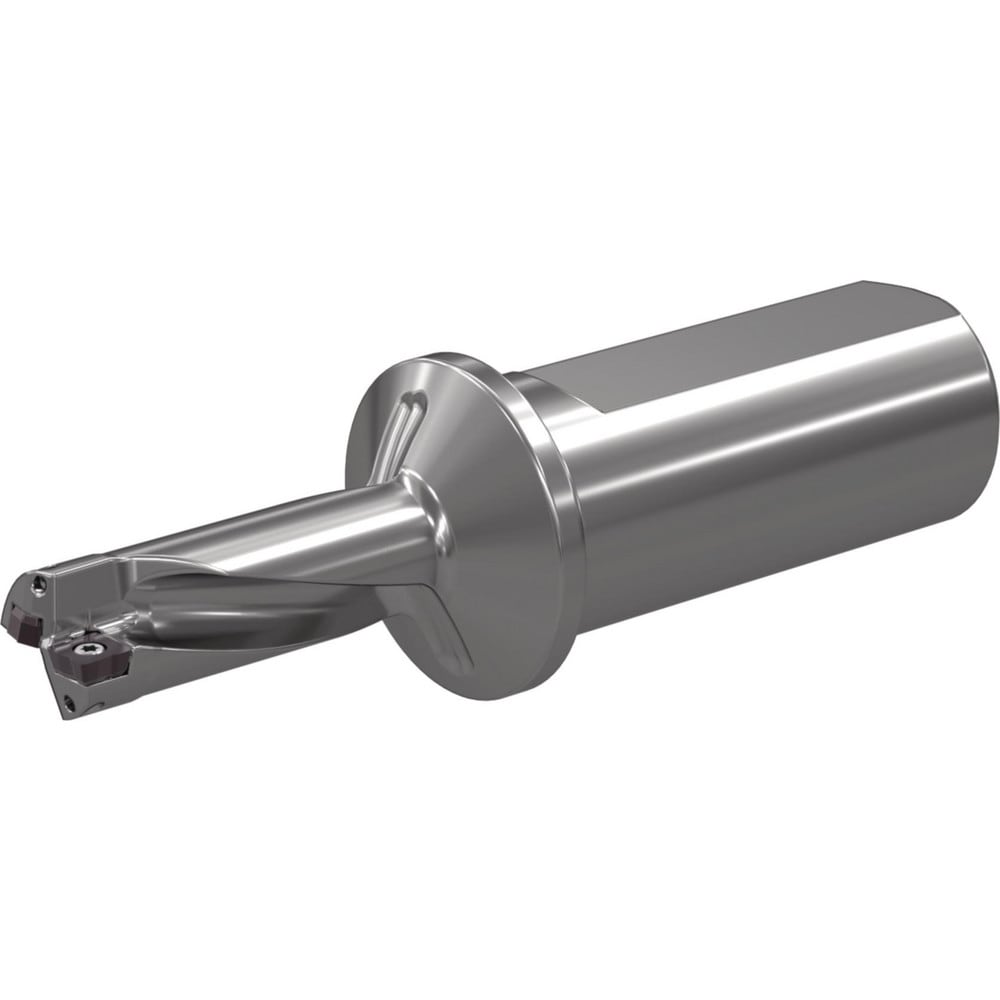

Brand: Widia / Part #: 5537942

Brand: Widia / Part #: 5537942


Item #: 97326755
Brand: Widia
Model #: 5537942

Product Specifications

Maximum Drill Depth 2.8050 in
Drill Depth by Diameter Ratio 2xD
Maximum Depth of Cut (mm) 71.24
Shank Type Weldon Flat
Shank Diameter (mm) 40.0000
Shank Diameter (Decimal Inch) 1.5748
Cutting Direction Right Hand
Drill Body Length to Flange (mm) 108.00
Toolholder Style TCF
Nose Diameter (Mm) ( - 2 Decimals) 35.00
Overall Length (mm) 179.2400
Overall Length 179.24
Through Coolant Yes
Series Top Cut 4
Flute Length (mm) 102.70
Shank Length (mm) 70.000
Gage Length (mm) 109.24
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Number of Shank Flats 1
Flute Type Helical Flute
Maximum Cutting Diameter (mm) 35.00
Projection (mm) 109.240
Number Of Flutes 2
Coolant Through Yes
$374.66
