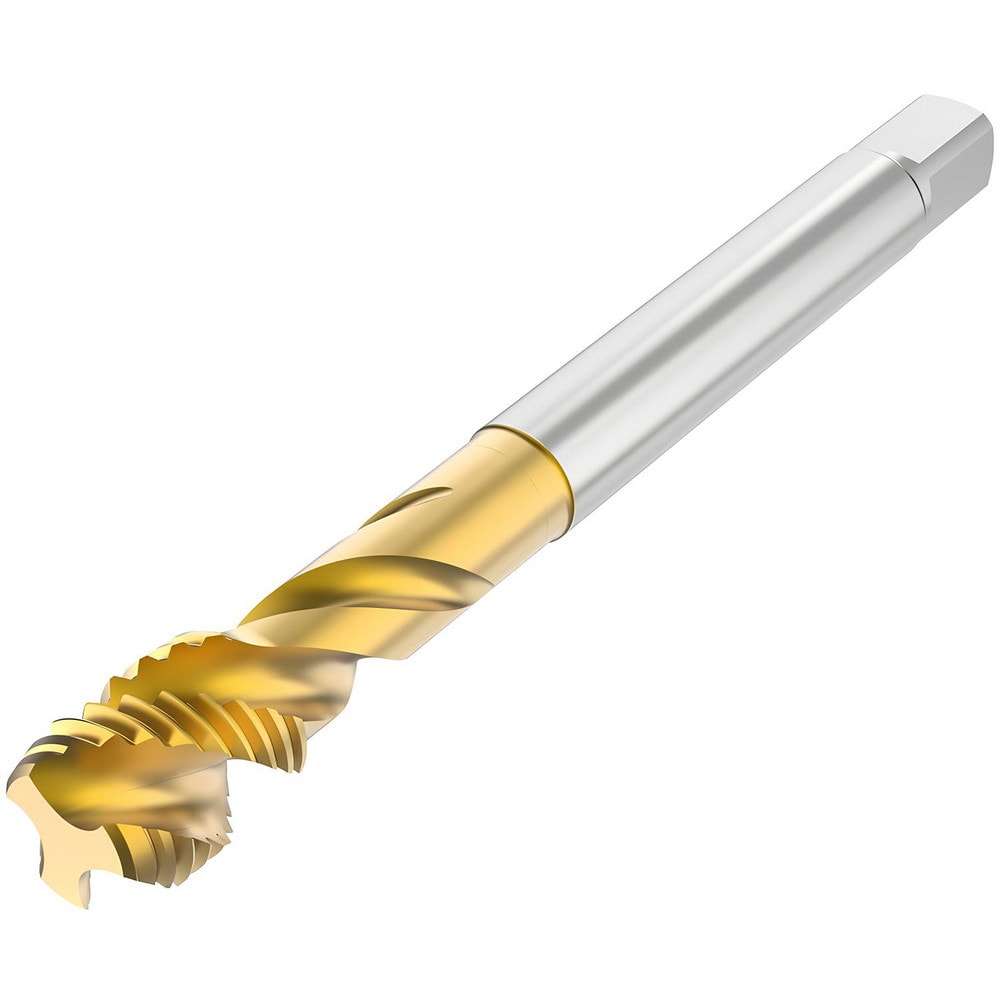

Brand: Seco / Part #: 10139614
Item #: 98678717
Brand: Seco
Model #: 10139614
Product Specifications
| Thread Size (mm) | MF27x2 |
| Chamfer | Modified Bottoming |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | HSS-E |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TN |
| Thread Depth (mm) | 20.00 |
| Coolant Through | No |
| Thread Length (mm) | 20.00 |
| Overall Length (mm) | 140.0000 |
| Thread Pitch (Decimal Inch) | 0.0787 |
| Thread Pitch (mm) | 2.00 |
| Thread Pitch (Inch) | 5/64 |
| Thread Standard | Metric Fine |
| Helix Angle | 40.00 |
| Oversize | No |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 20.0000 |
| Neck Length (mm) | 57.00 |
| Tapping Depth (mm) | 77.00 |
| Flute Style | Spiral |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | T32 |
| Shank Length (mm) | 63.000 |
