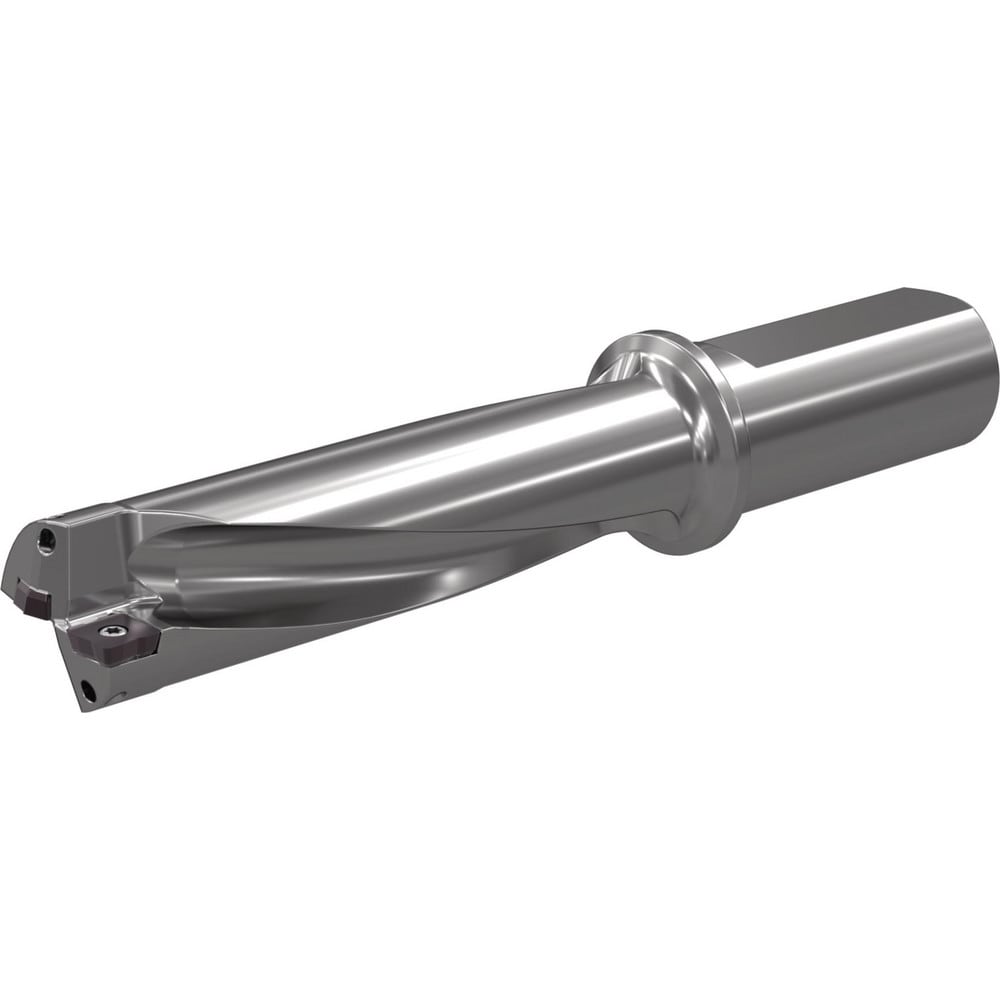

Brand: Widia / Part #: 5578408

Brand: Widia / Part #: 5578408


Item #: 18979450
Brand: Widia
Model #: 5578408

Product Specifications

Maximum Drill Depth 2.4680 in
Drill Depth by Diameter Ratio 3xD
Maximum Depth of Cut (Decimal Inch) 2.4680
Shank Type Weldon Flat
Shank Diameter (Inch) 1
Shank Diameter (Decimal Inch) 1.0000
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 3.4910
Toolholder Style TCF
Nose Diameter (Decimal Inch - 4 Decimals) 0.8130
Overall Length (Decimal Inch) 5.7249
Overall Length 5.72
Through Coolant Yes
Series Top Cut 4
Flute Length (Decimal Inch) 3.3620
Shank Length (Decimal Inch) 2.2047
Gage Length (Decimal Inch) 3.5201
Primary Workpiece Material Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; K; M; N
Coolant Hole Thread Type NPT
Coolant Hole Thread Size (Inch) 1/4-18
Number of Shank Flats 1
Flute Type Variable Index
Maximum Cutting Diameter (Decimal Inch) 0.8130
Number Of Flutes 2
Projection (Decimal Inch) 3.5201
Coolant Through Yes
