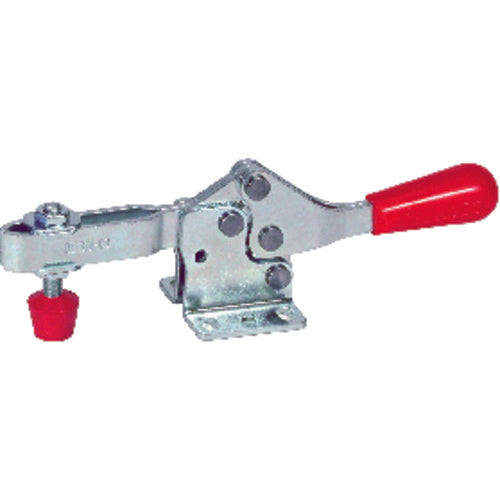

217-U HOLD DOWN ACTION
Item #: MA50217U
Brand: De-Sta-Co
Model #: 217-U
| Product Specifications | |
|---|---|
| Style | Horizontal Handle Hold Down |
| Bar Style | U-Shape |
| Type | Toggle Clamp |
| Mounting Diameter | 0.22″ |
| Arm | 1.55″ |
| Mounting Length | 1.03″ |
| Height Under Clamp Arm | .92″ |
| Mounting Width | 1.12″ |
| Holding Capacity | 200 lbs |
| Overall Width | 1.55″ |
| Overall Height | 1.95″ |
| Spindle Size | M6 or 1/4″ |
| Overall Length | 6.58″ |
| Base Length | 1.46″ |
| Spindle | .47″ |
| Maximum Clamping Thickness | .92″ |
| Thread Size | M6 |
| Toggle Lock Plus Lever | No |
| Model No | 217-U |
| Bar Type | Flanged |
| Includes | 91 |
| Clamp Arm Length | 2.30″ |
