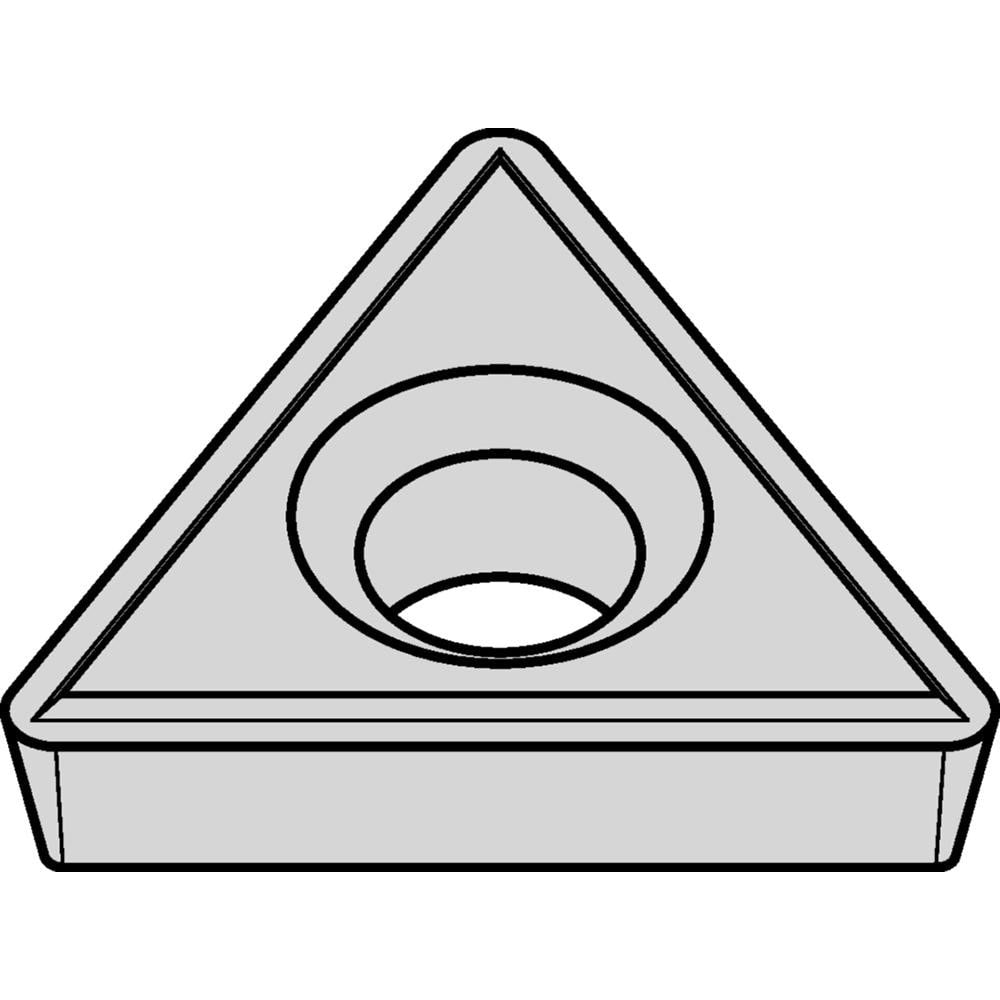

Brand: Widia / Part #: 2821688
Item #: 95895355
Brand: Widia
Model #: 2821688
Product Specifications
| Insert Style | TPHH |
| Insert Shape Code | T |
| Insert Size Code | 322 |
| Insert Shape | Triangle |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Manufacturer Grade | WK20CT |
| Corner Radius (Decimal Inch) | 0.0311 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1311 |
| Maximum Depth of Cut (Decimal Inch) | 0.3250 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | P |
| Tolerance Code | H |
| Included Angle | 60.00 |
| Relief Angle | 11.000 |
| Series | TPHH |
| Coating Process | MTCVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6500 |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | TPHH322 |
| Iso Code | TPHH160308 |
| Manufacturers Catalog Number | TPHH322 |
| Cutting Direction | Neutral |
| Coating Classification | Multi-Layered CVD |
| Chip Breaker | LF |
| Style | TPHH |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning; Boring |
