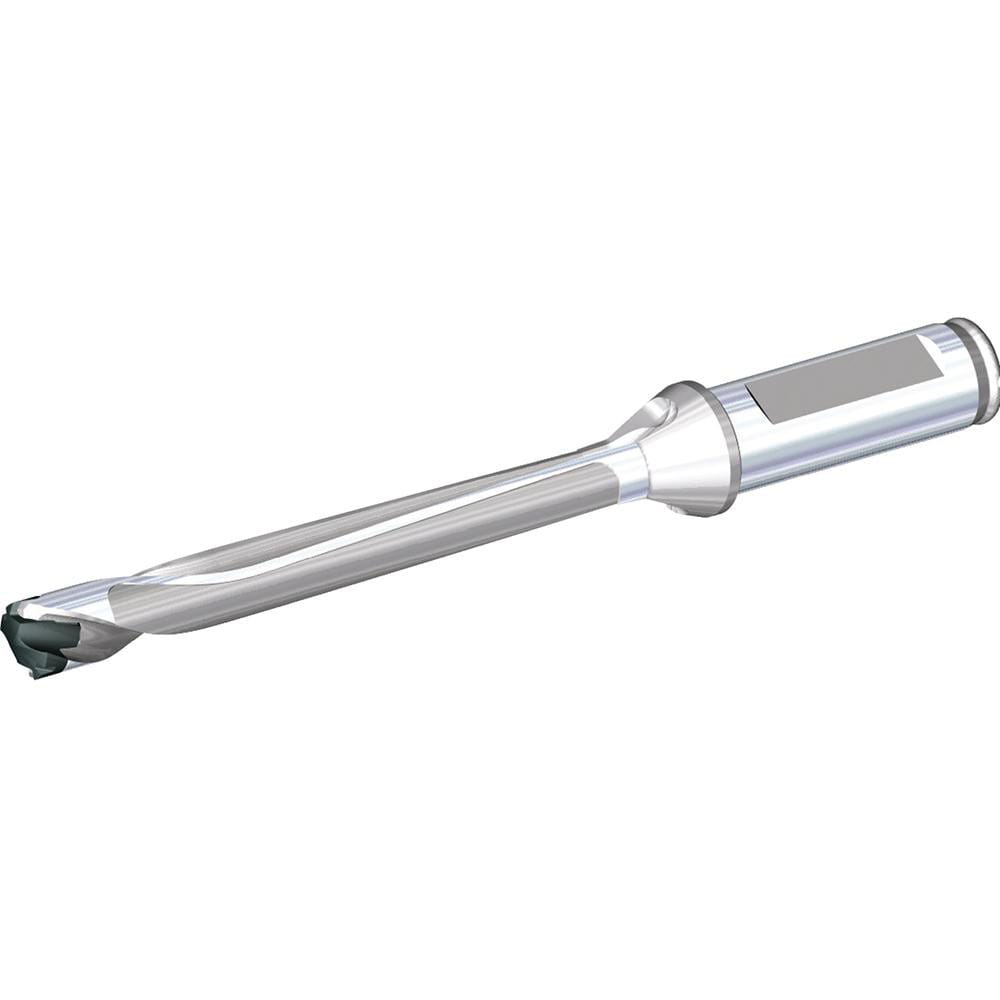

Brand: Widia / Part #: 4099059

Brand: Widia / Part #: 4099059


Item #: 90407594
Brand: Widia
Model #: 4099059

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.3543
Maximum Drill Diameter (Decimal Inch) 0.3736
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Decimal Inch) 2.9918
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 1/2
Shank Diameter (Decimal Inch) 0.5000
Insert Seat Size W12
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W12
Overall Length (Decimal Inch) 5.5217
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 3.5335
Body Length (Decimal Inch) 3.5650
Shank Length (Decimal Inch) 1.7717
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0654
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$262.52
