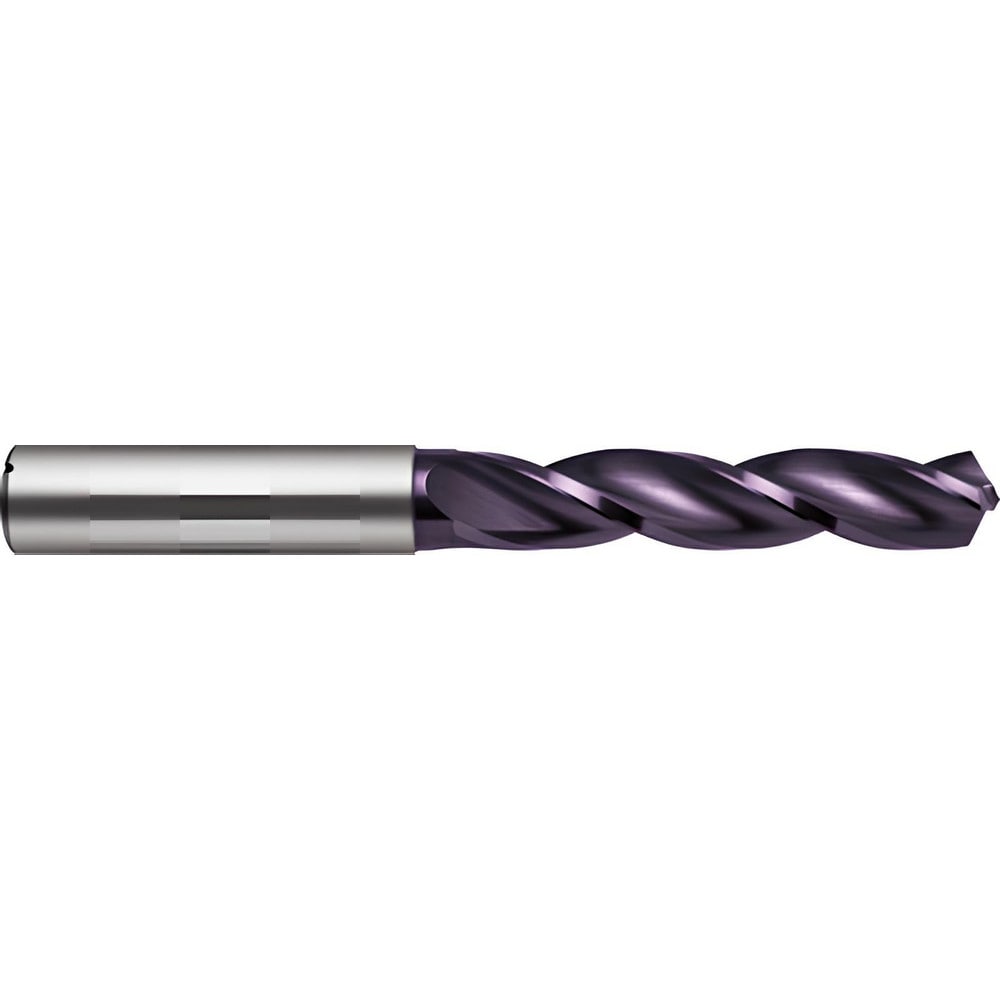

Brand: Guhring / Part #: 9065900119100
Item #: 74664251
Brand: Guhring
Model #: 9065900119100
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4689 |
| Drill Bit Size (Inch) | 15/32 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Nano-FIREX |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular Spiral |
| Flute Type | Helical |
| Point Type | Special Point Type |
| Coolant Through | Yes |
| Shank Type | Straight |
| Number of Flutes | 3 |
| Overall Length (mm) | 118.0000 |
| Flute Length (mm) | 71.00 |
| Series | 6590 |
| Tool Application | Drilling; Self-Centering |
| Flute Length x Diamter Ratio | 5xD |
| Shank Diameter (mm) | 12.0000 |
| Maximum Drilling Depth (mm) | 53.14 |
| Shank Length (mm) | 45.000 |
| Drill Bit Diameter Tolerance | m7 |
| Tool Performance | High Performance |
