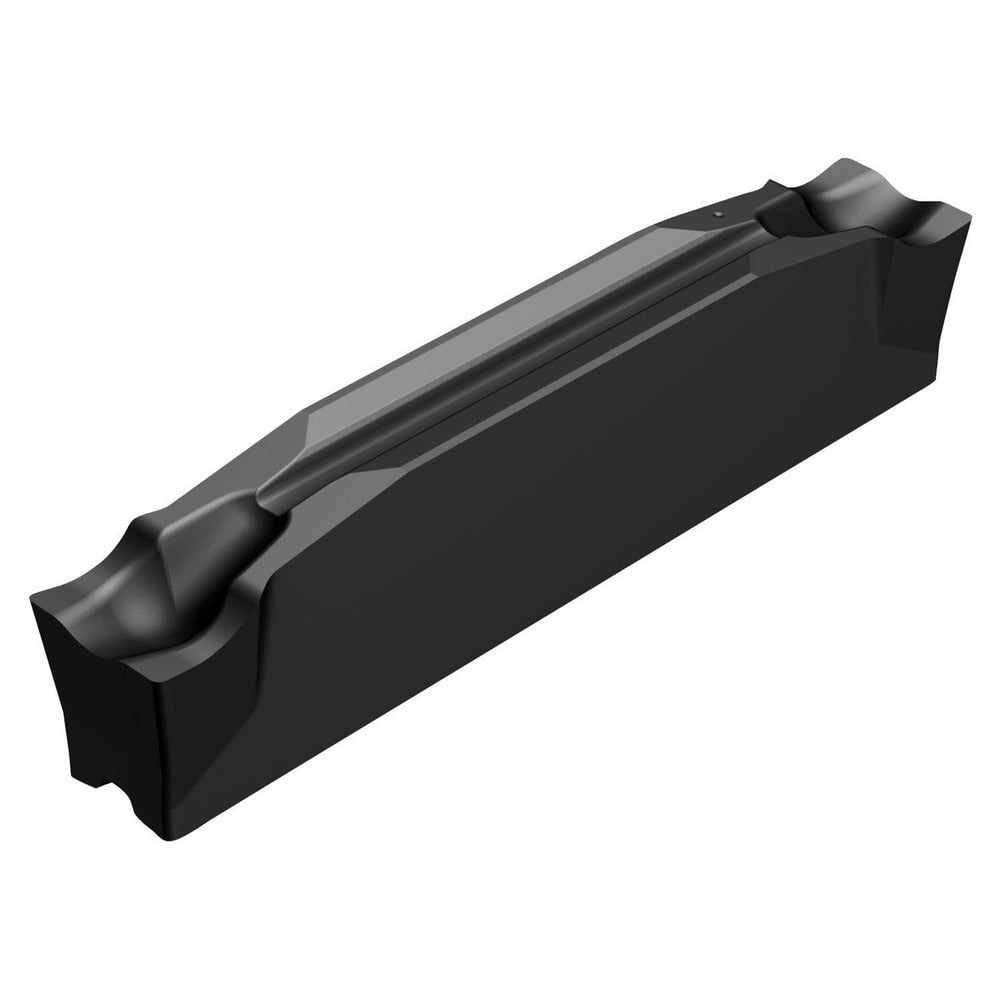

Cutoff Insert: C2IF2N02500002CM 3115, Carbide, 2.50 mm Cutting Width, 0.0984" Cutting Width
Item #: 00986596
Brand: Sandvik Coromant
Model #: 8194186
Product Specifications
| Insert Style | C2I |
| Insert Size Code | F2 |
| Insert Material | Carbide |
| Manufacturer Grade | 3115 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Cutting Width (mm) | 2.50 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut 2 |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | C2I-F2N-0250-0002-CM3115 |
| Cutting Height (mm) | 18.93 |
| Cutting Height (Decimal Inch) | 0.7453 |
| Manufacturers Catalog Number | C2I-F2N-0250-0002-CM3115 |
| Insert Seat Size | F |
| Cutting Direction | Left Hand |
| Coating/Finish | TiCN/Al2O3 |
| UNSPSC Code | 23242105 |
