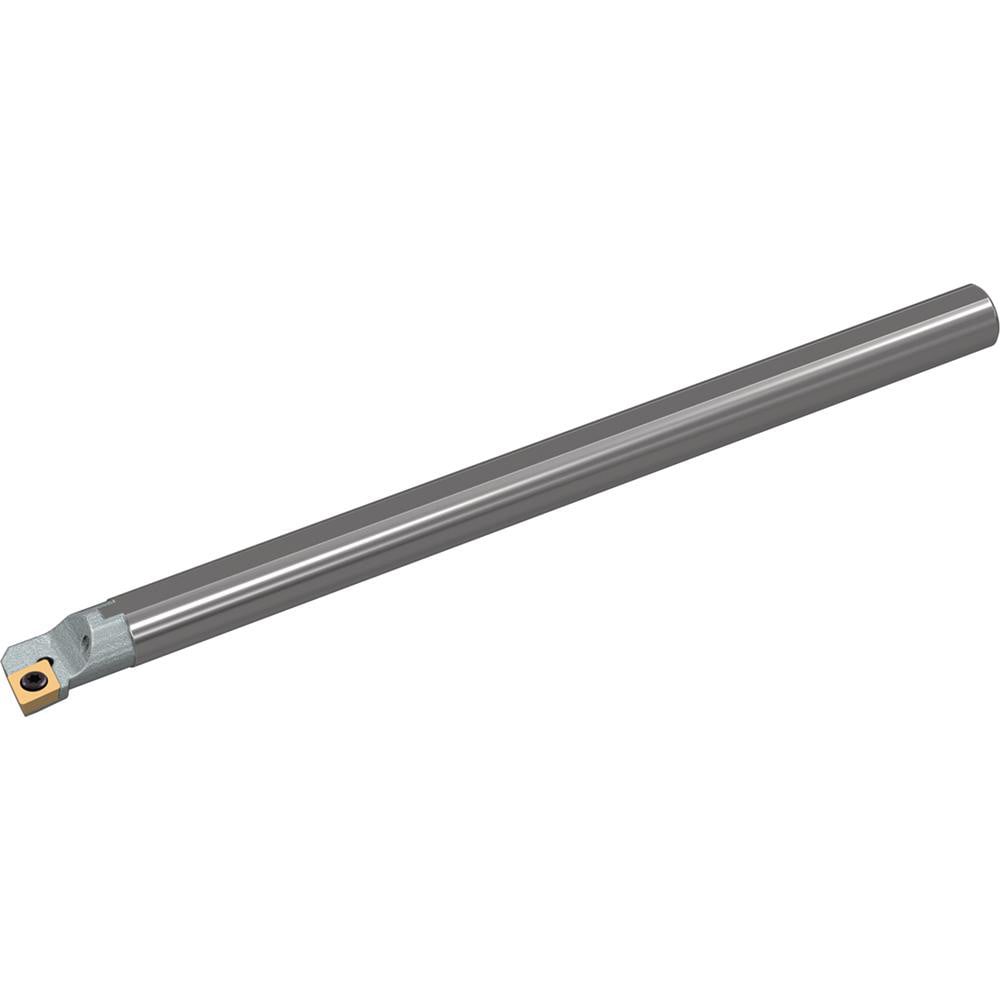

Brand: Widia / Part #: 5077649
Item #: 02769412
Brand: Widia
Model #: 5077649
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.7700 |
| Maximum Bore Depth (Decimal Inch) | 1.8750 |
| Toolholder Style | SCLPR |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 10.0000 |
| Overall Length (Inch) | 10 |
| Compatible Insert Size Code | CPMT3252 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | -2.000 |
| Lead Angle | -5.000 |
| Series | A-SCLP |
| Insert Inscribed Circle (Inch) | 3/8 |
| Compatible Insert Thickness (Decimal Inch) | 0.1563 |
| Compatible Insert Thickness (mm) | 3.97 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7185 |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Coolant Hole Diameter (Decimal Inch) | 0.1560 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | A10SSCLPR3 |
| Radial Rake | 0 |
| Coolant Through | Yes |
