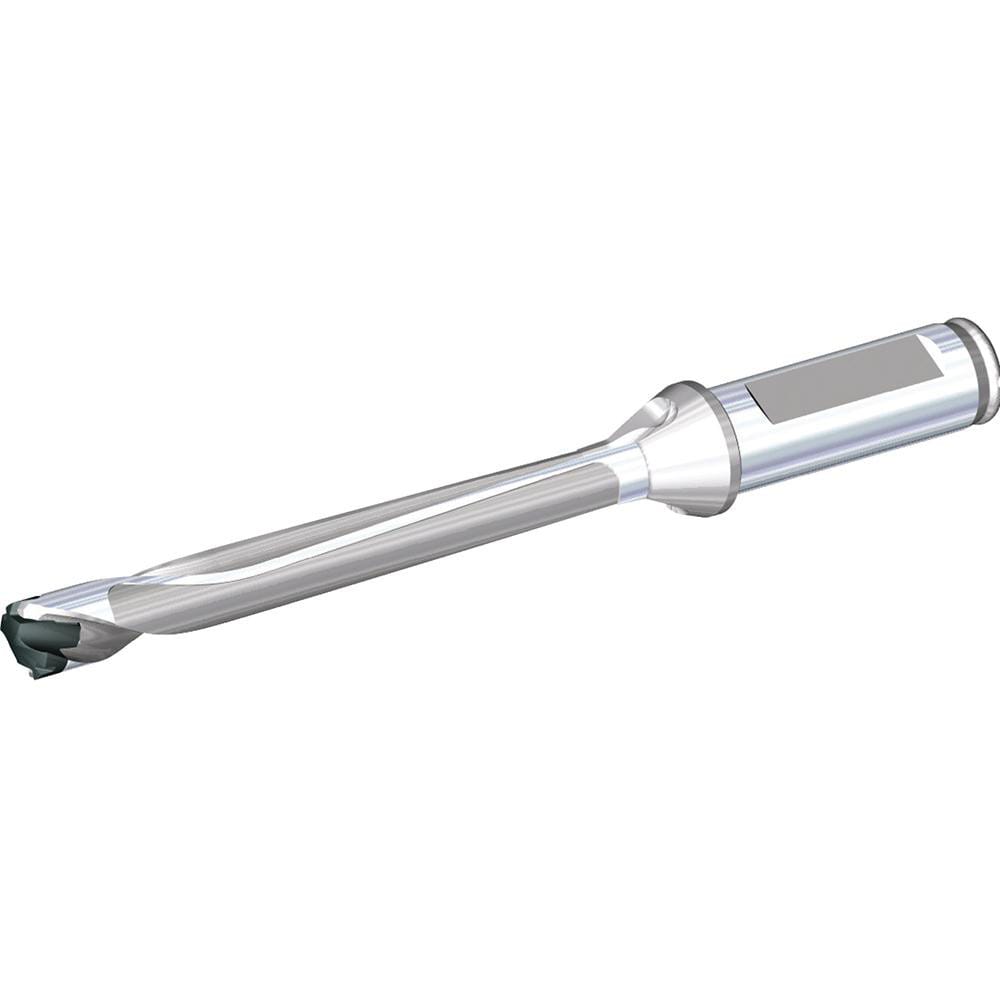

Brand: Widia / Part #: 3992142
Item #: 90218157
Brand: Widia
Model #: 3992142
Product Specifications
| Minimum Drill Diameter (mm) | 8.50 |
| Maximum Drill Diameter (mm) | 8.99 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Type | Flatted |
| Insert Style | TDM |
| Insert Seat Size | W11 |
| Shank Diameter (mm) | 12.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W11 |
| Overall Length (mm) | 133.5000 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (mm) | 83.00 |
| Body Length | 88.500 |
| Shank Length (mm) | 45.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
