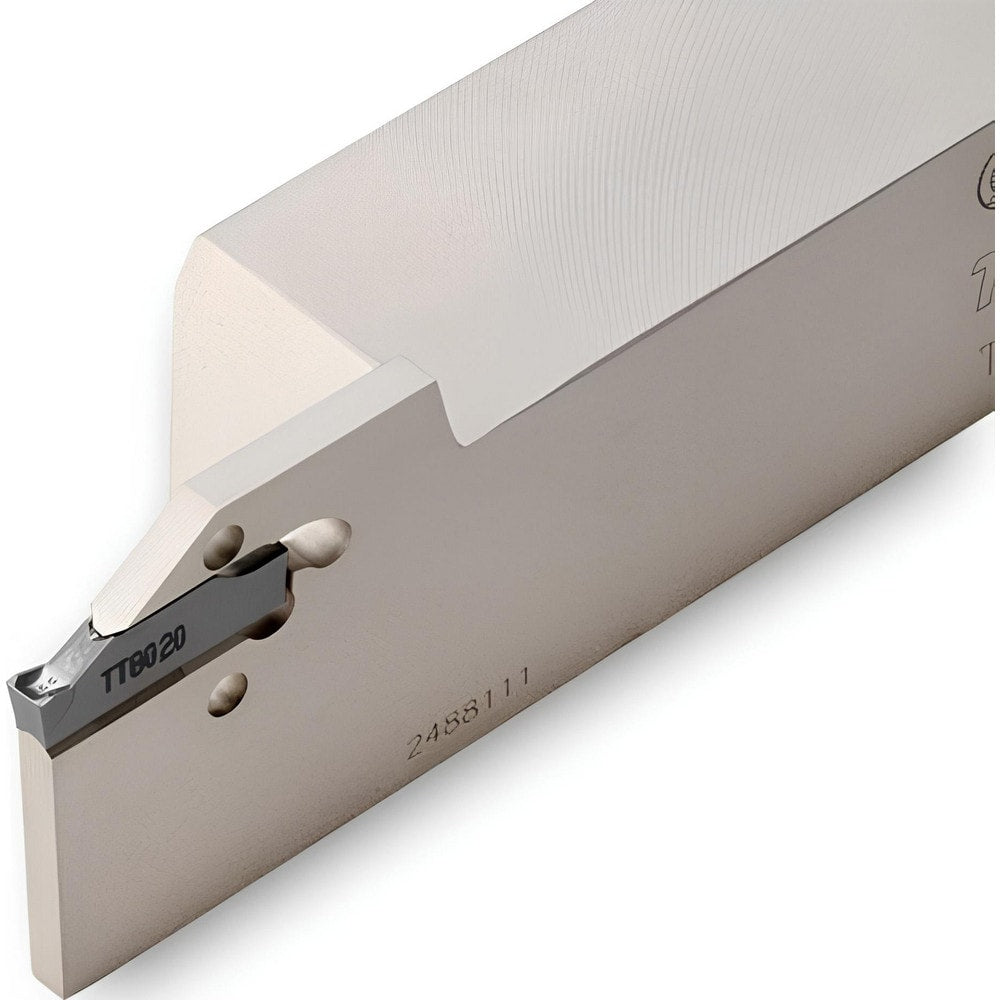

Brand: Ingersoll Cutting Tools / Part #: 6218975
Item #: 96424965
Brand: Ingersoll Cutting Tools
Model #: 6218975
Product Specifications
| Internal or External | External |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Hand of Holder | Left Hand |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | TGER |
| Tool Material | Steel |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 3 |
| Insert Compatibility | TDUF3..; TDx3..; TSx3.. |
| Shank Height (Inch) | 1 |
| Shank Length (Decimal Inch) | 4.7800 |
| Shank Width/Diameter (Inch) | 1 |
| Series | TGER |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Tool Application | Grooving; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9530 |
| Head Length (Decimal Inch) | 1.2200 |
| Primary Workpiece Material | Universal |
| Manufacturers Catalog Number | TGEL25.4-3 |
| Complete Insert Compatibility | TDUF3..; TDx3..; TSx3.. |
| Insert Seat Size | 3.0 |
| Center to Cutting Edge (Decimal Inch) | 0.9530 |
| Number of Inserts Included in Order | 1 |
| Coolant Through | No |
