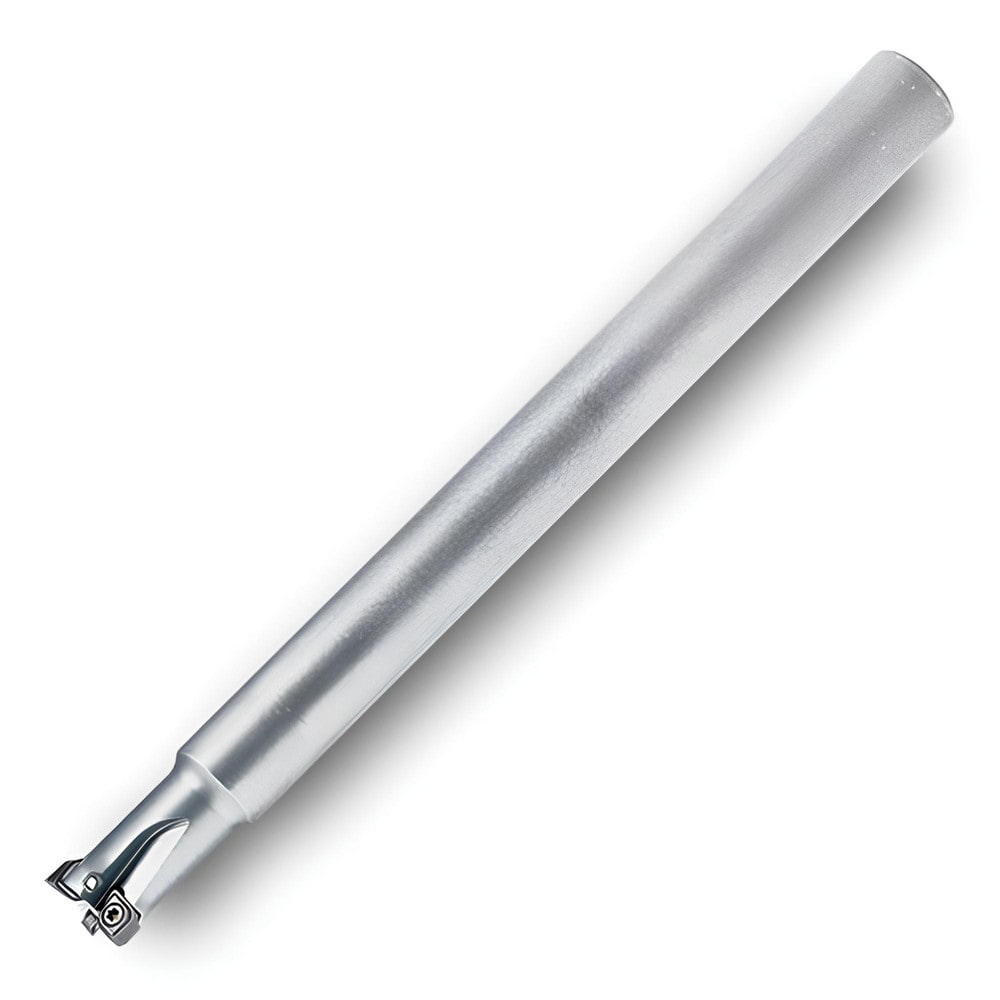

Brand: Ingersoll Cutting Tools / Part #: 3017839
Item #: 60350832
Brand: Ingersoll Cutting Tools
Model #: 3017839
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Inch) | 1 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Cutter Style | 15V1G |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 203.2000 |
| Overall Length (Decimal Inch) | 8.0000 |
| Tool Material | Steel |
| Series | 15V1G |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 5.1300 |
| Shank Length (mm) | 130.300 |
| Head Length (Decimal Inch) | 2.8700 |
| Head Length (mm) | 72.90 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative |
| Complete Insert Compatibility | CNHU110420N |
| Insert Compatibility | CNHU110420N |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 15V1G-10057S1R01 |
| Usable Length (mm) | 72.900 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 2.8700 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | No |
