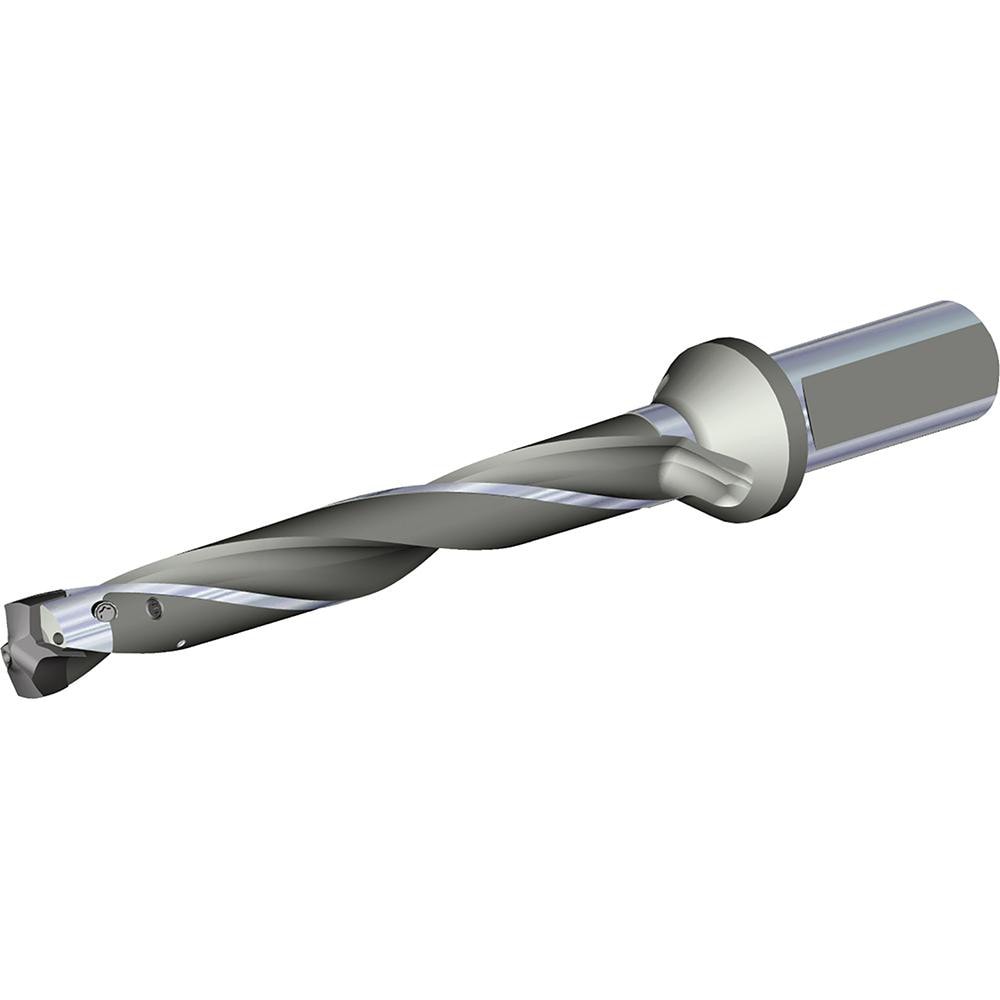

Brand: Widia / Part #: 6572247
Item #: 90310186
Brand: Widia
Model #: 6572247
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6300 |
| Maximum Drill Diameter (Decimal Inch) | 0.6692 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 5.3543 |
| Shank Type | Flatted |
| Insert Style | TDMX |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Seat Size | A |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Compatible Insert Size Code | A |
| Overall Length (Decimal Inch) | 8.5039 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (Decimal Inch) | 5.3543 |
| Body Length (Decimal Inch) | 6.0551 |
| Shank Length (Decimal Inch) | 1.9685 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
