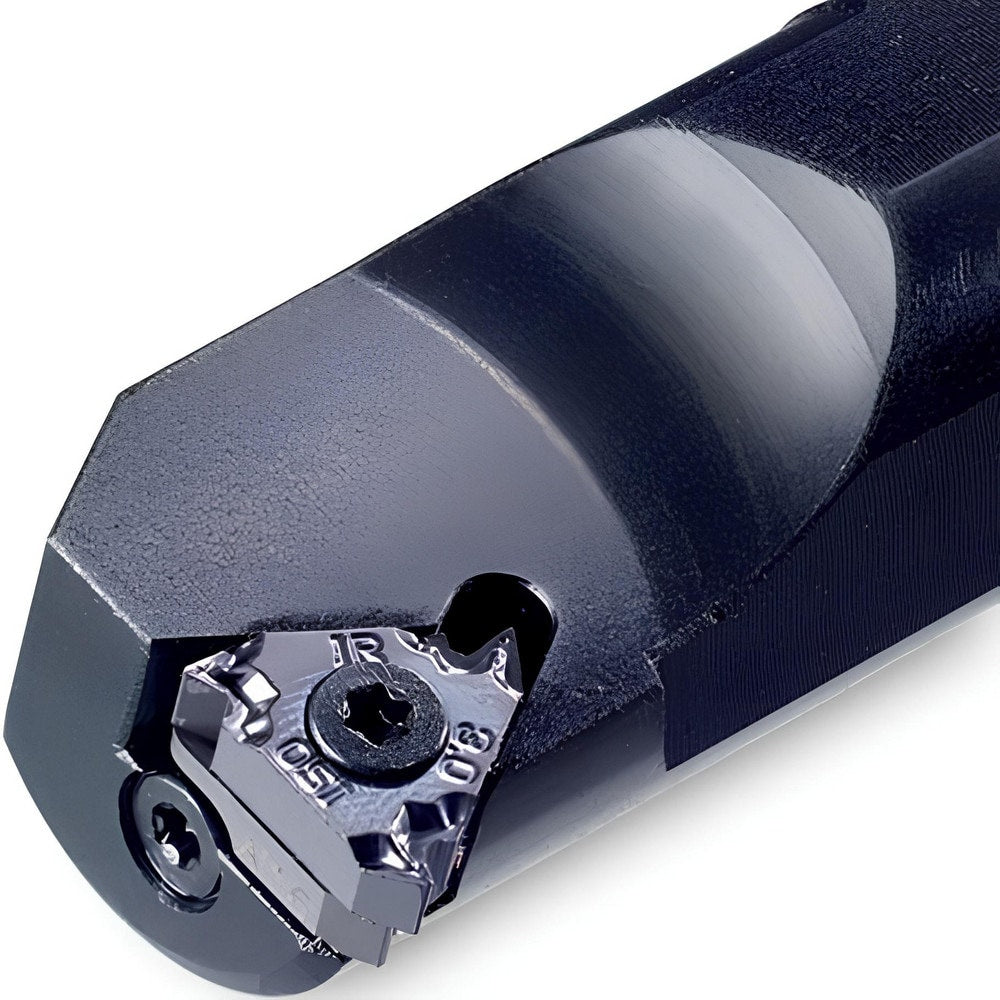

Brand: Ingersoll Cutting Tools / Part #: 3830000
Item #: 67469858
Brand: Ingersoll Cutting Tools
Model #: 3830000
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Compatible Insert Size Code | 27 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Toolholder Style | SIL |
| Insert Compatibility | 27IL |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Length (Inch) | 12 |
| Overall Length (Inch) | 12 |
| Minimum Bore Diameter (Decimal Inch) | 1.8000 |
| Series | SIL |
| Multi-use Tool | Yes |
| Cutting Tool Application | Threading |
| Back of Bar to Cutting Edge (Inch) | 1-3/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.7500 |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Steel |
| Head Width (Inch) | 1 |
| Style | SIL |
| D -In-- | 1.5000 |
| Coolant Through | No |
