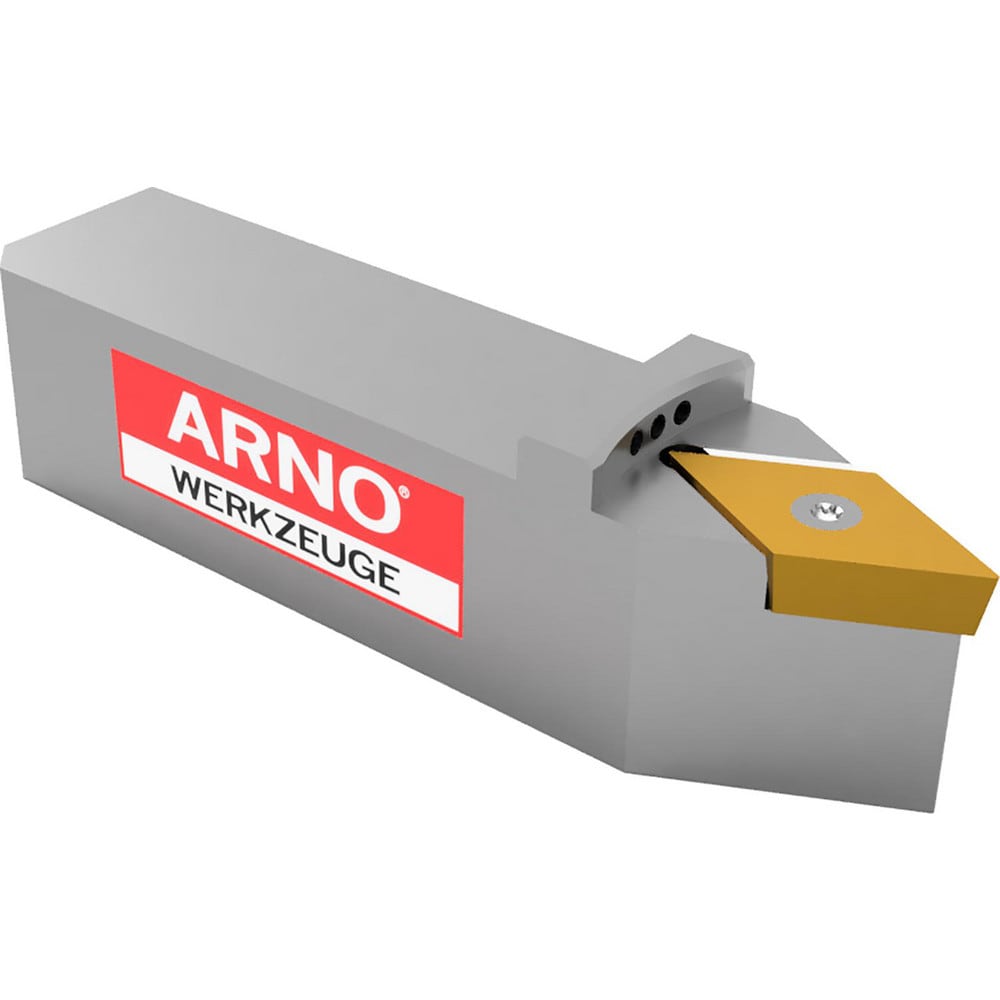

Brand: Arno / Part #: 112239
Item #: 02022424
Brand: Arno
Model #: 112239
Product Specifications
| Cutting Direction | Neutral |
| Hand of Holder | Neutral |
| Compatible Insert Size Code | DC*T 21.5? (DC*T 0702?) |
| Toolholder Style | AFC - SDNCN |
| Rake | Neutral |
| Rake Angle | 0 |
| Multi-use Tool | No |
| Lead Angle | 27.500 |
| Insert Holding Method | Screw |
| Insert Compatibility | DC*T 21.5? (DC*T 0702?) |
| Shank Width (mm) | 12.00 |
| Shank Height (mm) | 12.00 |
| Series | ISO TURN for ARNO FAST CHANGE |
| Overall Length (mm) | 70.0000 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Toolholder Material | Alloy Steel |
| Coolant Through | Yes |
