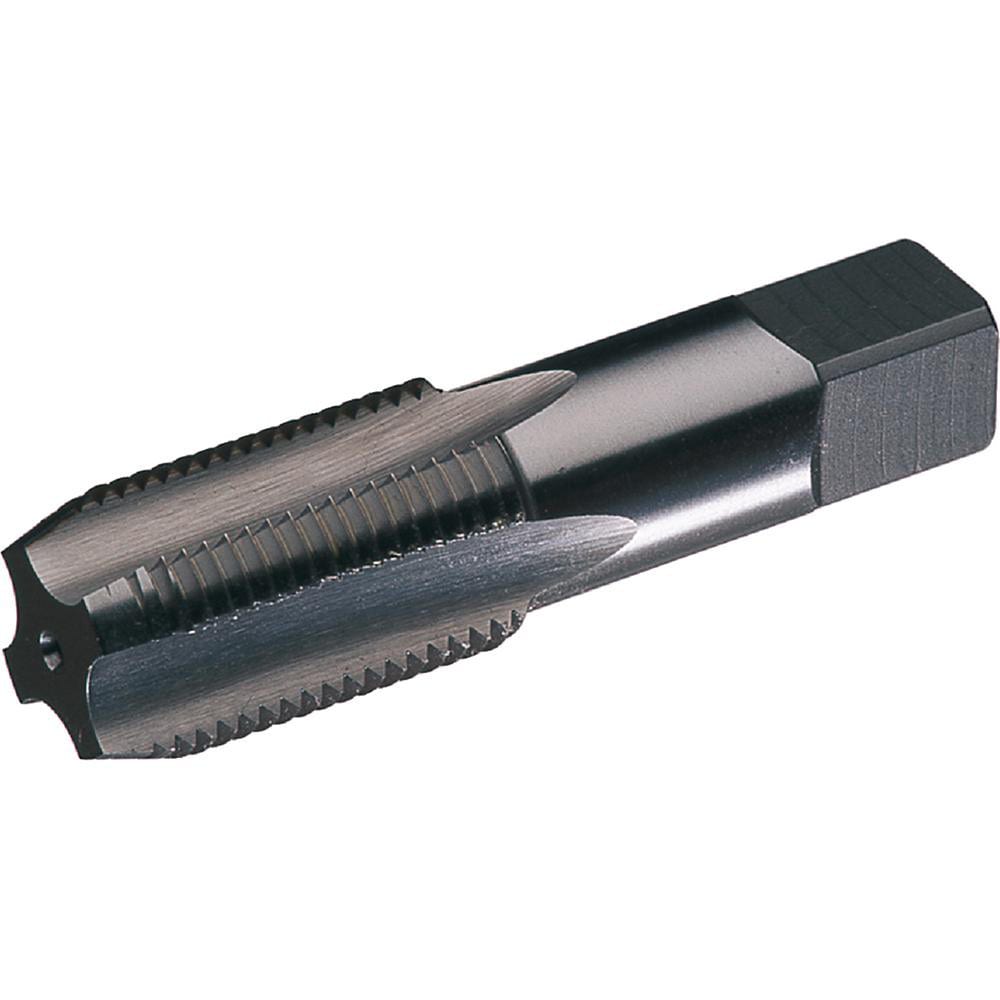

Brand: Widia / Part #: 2748084
Item #: 90309287
Brand: Widia
Model #: 2748084
Product Specifications
| Thread Standard | NPSF |
| Material | High Speed Steel |
| Overall Length (Inch) | 2-1/8 |
| Overall Length (Decimal Inch) | 2.1250 |
| Threads per Inch | 27 |
| Thread Size (Inch) | 1/8-27 |
| Application | Metal |
| Thread Length (Inch) | 3/4 |
| Tap Type | Machine Tap |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Square Size (Decimal Inch) | 0.2340 |
| Chamfer | Modified Bottoming |
| Thread Profile | Standard |
| Series | 5323 |
| Thread Length (Decimal Inch) | 0.7500 |
| Coating/Finish | Uncoated |
| Square Length (Decimal Inch) | 0.3750 |
| Projection (Decimal Inch) | 0.7500 |
| Thread Pitch (mm) | 0.94 |
| Thread Depth (Decimal Inch) | 0.7500 |
| Number Of Flutes | 4 |
| Square Length (mm) | 9.53 |
