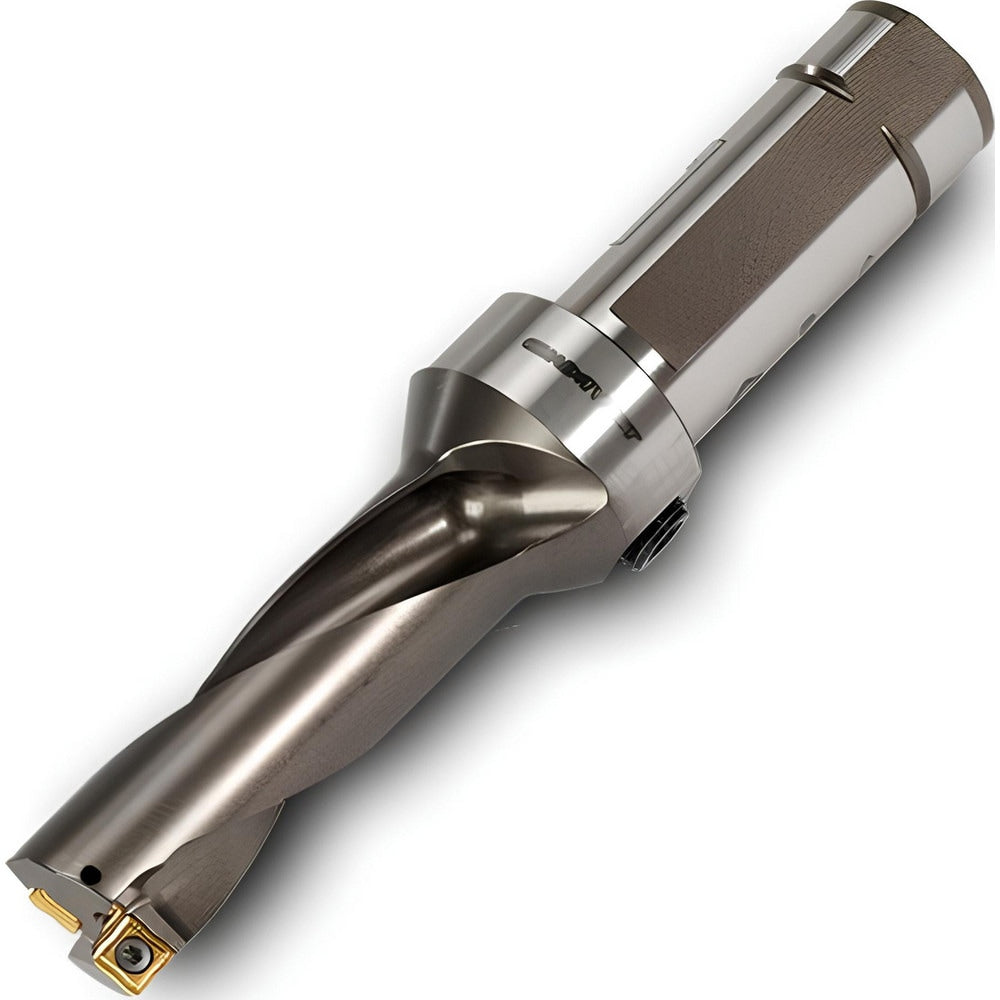

Brand: Ingersoll Cutting Tools / Part #: 6100539

Brand: Ingersoll Cutting Tools / Part #: 6100539


Item #: 32479727
Brand: Ingersoll Cutting Tools
Model #: 6100539

Product Specifications

Maximum Drill Depth 4.6200 in
Drill Depth by Diameter Ratio 4xD
Maximum Depth of Cut (Decimal Inch) 4.6200
Shank Type Combination
Shank Diameter (Inch) 1-1/4
Cutting Direction Right Hand
Drill Body Length to Flange (Decimal Inch) 5.8700
Toolholder Style QR02
Nose Diameter (Decimal Inch - 4 Decimals) 1.1560
Overall Length (Decimal Inch) 9.0200
Overall Length 9.02
Through Coolant Yes
Series QR
Flute Length (Decimal Inch) 4.6200
Shank Length (Decimal Inch) 3.1600
Primary Workpiece Material Universal
Primary Workpiece Material Code O
Flute Type Slow Spiral
Maximum Cutting Diameter (Decimal Inch) 1.1560
Number Of Flutes 2
Coolant Through Yes
