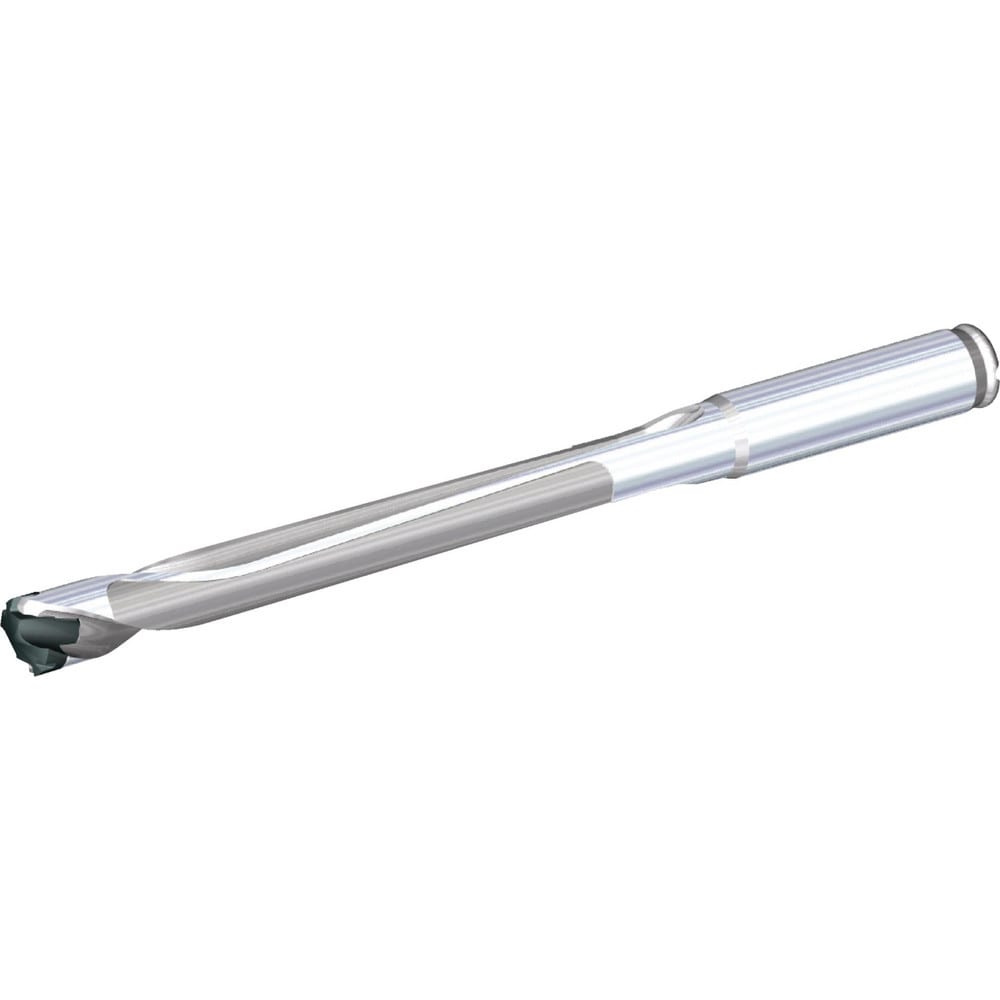

Brand: Widia / Part #: 3992542
Item #: 90087537
Brand: Widia
Model #: 3992542
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4330 |
| Maximum Drill Diameter (Decimal Inch) | 0.4327 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 4.3300 |
| Shank Type | Cylindrical |
| Insert Style | TDM |
| Shank Diameter (Inch) | 7/16 |
| Shank Diameter (Decimal Inch) | 0.4375 |
| Insert Seat Size | K |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | K |
| Overall Length (Decimal Inch) | 6.0001 |
| Overall Length (Inch) | 6 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 4.2120 |
| Body Length (Decimal Inch) | 5.7855 |
| Shank Length (Decimal Inch) | 1.6701 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.0681 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 4 |
