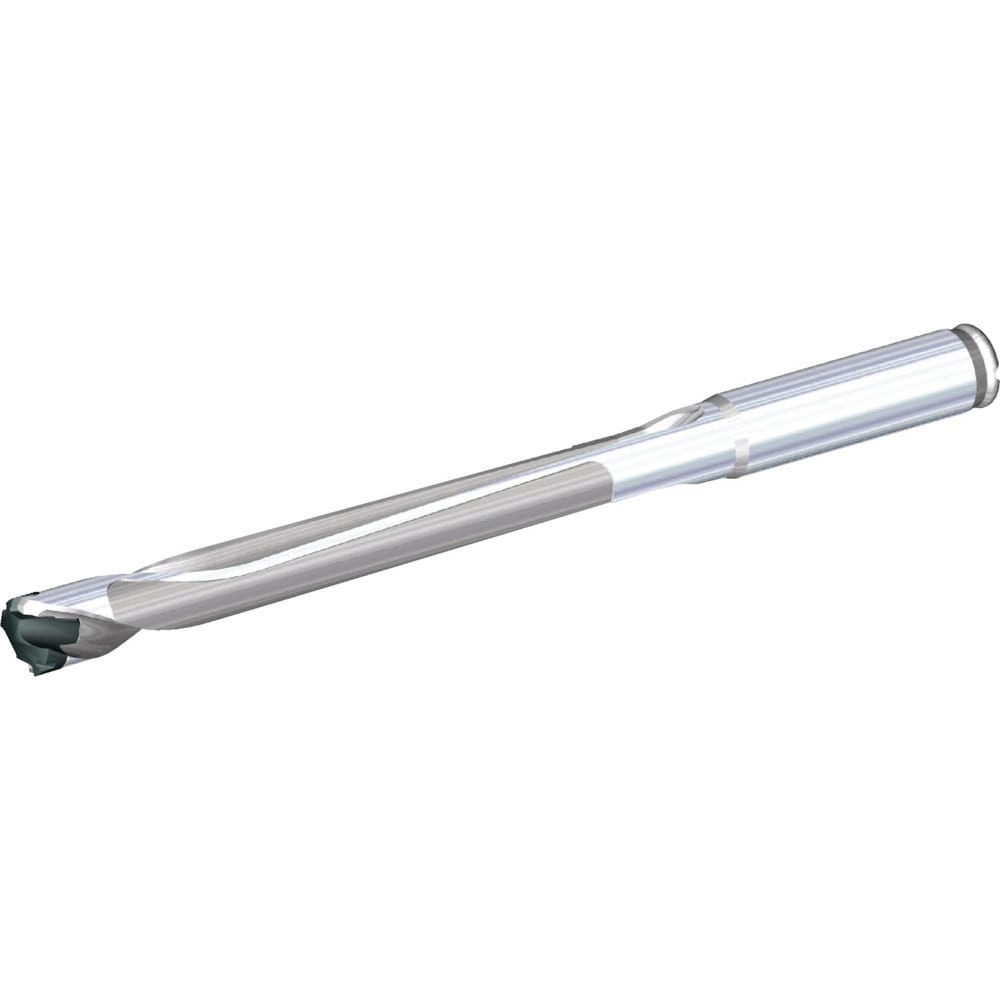

Brand: Widia / Part #: 3992544

Brand: Widia / Part #: 3992544


Item #: 86432630
Brand: Widia
Model #: 3992544

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.4528
Maximum Drill Diameter (Decimal Inch) 0.4720
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Decimal Inch) 3.7795
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 1/2
Shank Diameter (Decimal Inch) 0.5000
Insert Seat Size W17
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W17
Overall Length (Decimal Inch) 6.5000
Overall Length (Inch) 6-1/2
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 4.5606
Body Length (Decimal Inch) 6.2636
Shank Length (Decimal Inch) 1.7900
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0827
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$269.73
