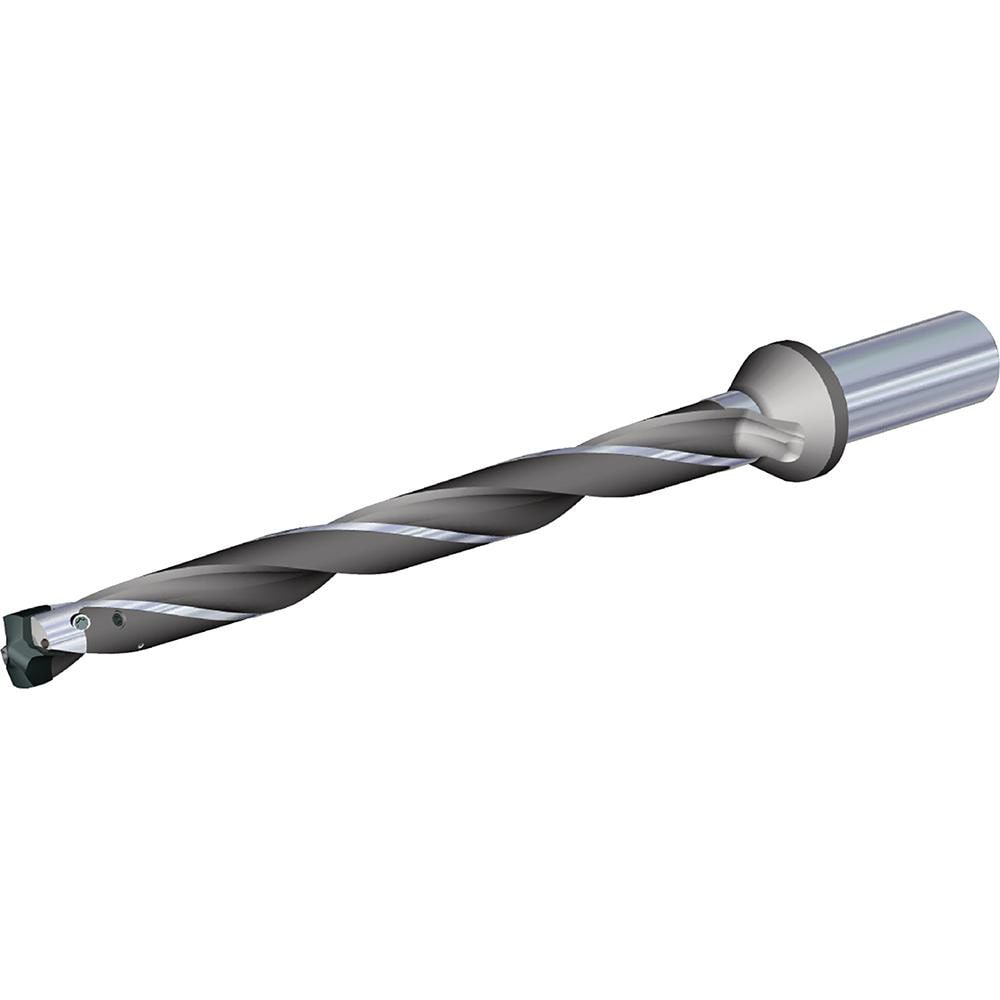

Brand: Widia / Part #: 6681046
Item #: 90222613
Brand: Widia
Model #: 6681046
Product Specifications
| Minimum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (mm) | 26.00 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 312.00 |
| Shank Type | Cylindrical |
| Insert Style | TDMX |
| Insert Seat Size | J |
| Shank Diameter (mm) | 32.0000 |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Compatible Insert Size Code | J |
| Overall Length (mm) | 416.0000 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (mm) | 312.00 |
| Body Length | 356.000 |
| Shank Length (mm) | 60.000 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (mm) | 4.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
