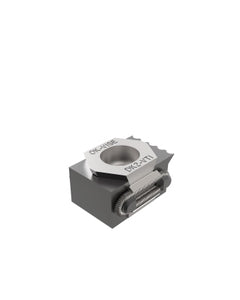

Knife Edge Grip Jaw Clamp, Knife Edge Grip and Smooth Jaws, 107 ft/lbs Torque, 12,364 lbs Clamping Force, 0.86″ Jaw Height, 1.18″ Jaw Width
Item #: SG67DK2VTISG
Brand: Jergens
Model #: DK2-VTI-SG
| Product Specifications | |
|---|---|
| Type | Knife Edge Grip Jaw Clamp |
| Length Maximum | 2.1″ |
| Style | Knife Edge Grip and Smooth Jaws |
| Length Minimum | 1.83″ |
| Torque | 107 ft/lbs |
| Length Optimum | 1.96″ |
| Clamp Center to Jaw Face Minimum | 1″ |
| Total Width | 1.61″ |
| Clamp Center to Jaw Face Optimum | 1.07″ |
| Weight | 0.41 lbs |
| Clamp Center to Jaw Face Maximum | 1.14″ |
| Socket Head Screw Size | 1/2-13 × 1-1/4″ |
| Clamping Force | 12,364 lbs |
| Hardness of Jaws HRC X | 38-42 |
| Jaw Height | 0.86″ |
| Hardness of Jaws HRC Y | 48-52 |
| Jaw Width | 1.18″ |
| Series | OK-Vise Clamps |
