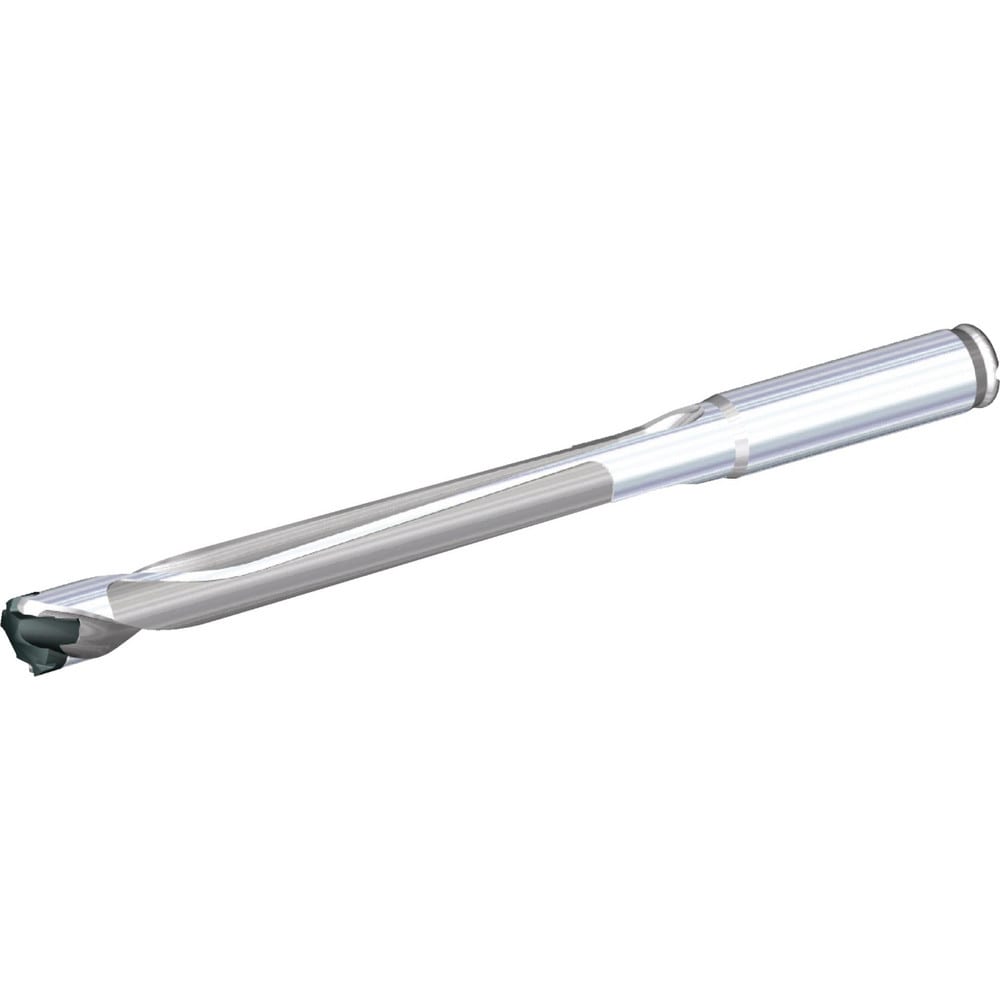

Brand: Widia / Part #: 3992548

Brand: Widia / Part #: 3992548


Item #: 86432622
Brand: Widia
Model #: 3992548

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.5118
Maximum Drill Diameter (Decimal Inch) 0.5311
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Decimal Inch) 4.2520
Shank Type Cylindrical
Insert Style TDM
Shank Diameter (Inch) 9/16
Shank Diameter (Decimal Inch) 0.5625
Insert Seat Size W20
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W20
Overall Length (Decimal Inch) 7.1260
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 5.2165
Body Length (Decimal Inch) 6.8615
Shank Length (Decimal Inch) 1.7902
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0906
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$295.23

2% Off All Online Orders
Use Code: 2%OFF

Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
