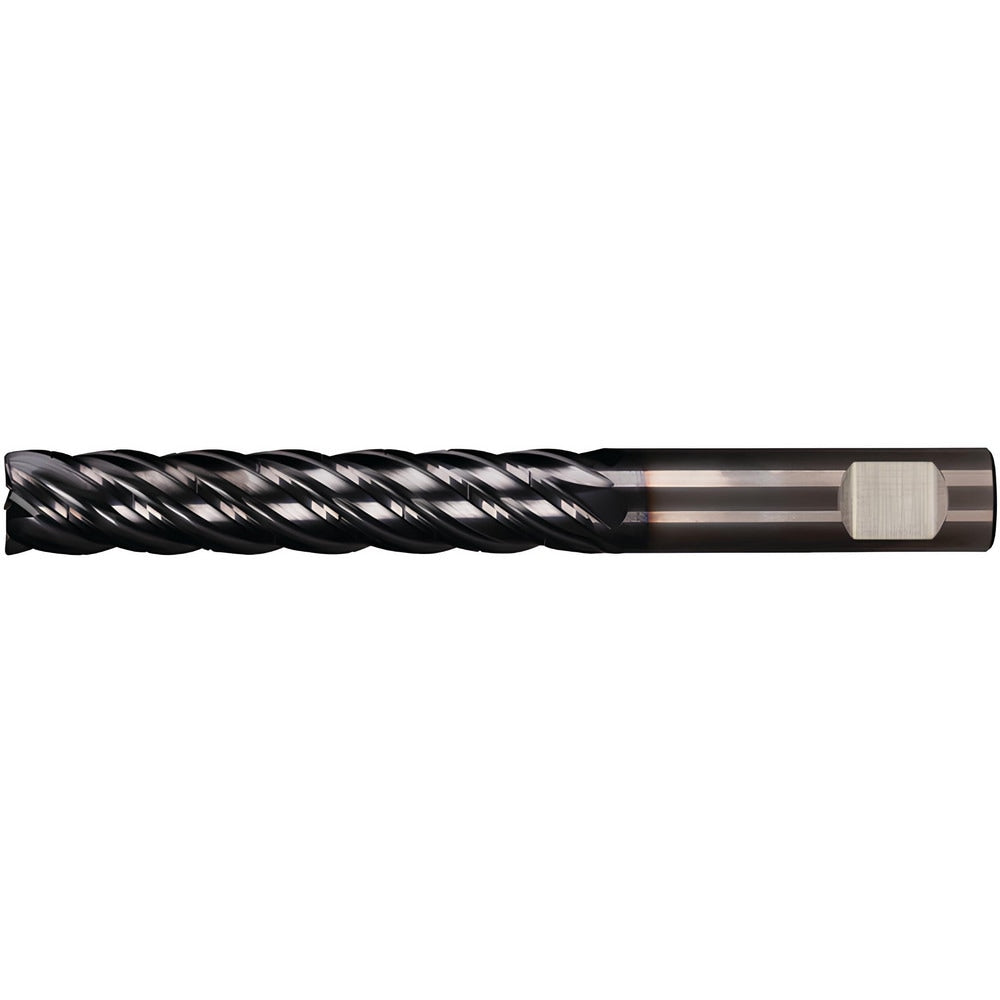

Brand: Widia / Part #: 7073632
Item #: 88000195
Brand: Widia
Model #: 7073632
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Corner Radius (mm) | 0.50 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single End |
| Overall Length (mm) | 170.0000 |
| Length of Cut (mm) | 105.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Flute Direction | Right Hand |
| Helix Angle | 64 |
| Chipbreaker | No |
| Flute Type | Helical Flute |
| Extended Reach | No |
| Shank Type | Weldon |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (mm) | 20.0000 |
| Minimum Helix Angle | 63 |
| Maximum Helix Angle | 65 |
| Series | Varimill Chipsplitter |
| Helix Style | Variable |
| Manufacturers Catalog Number | 572TM20019REW WP15PE |
