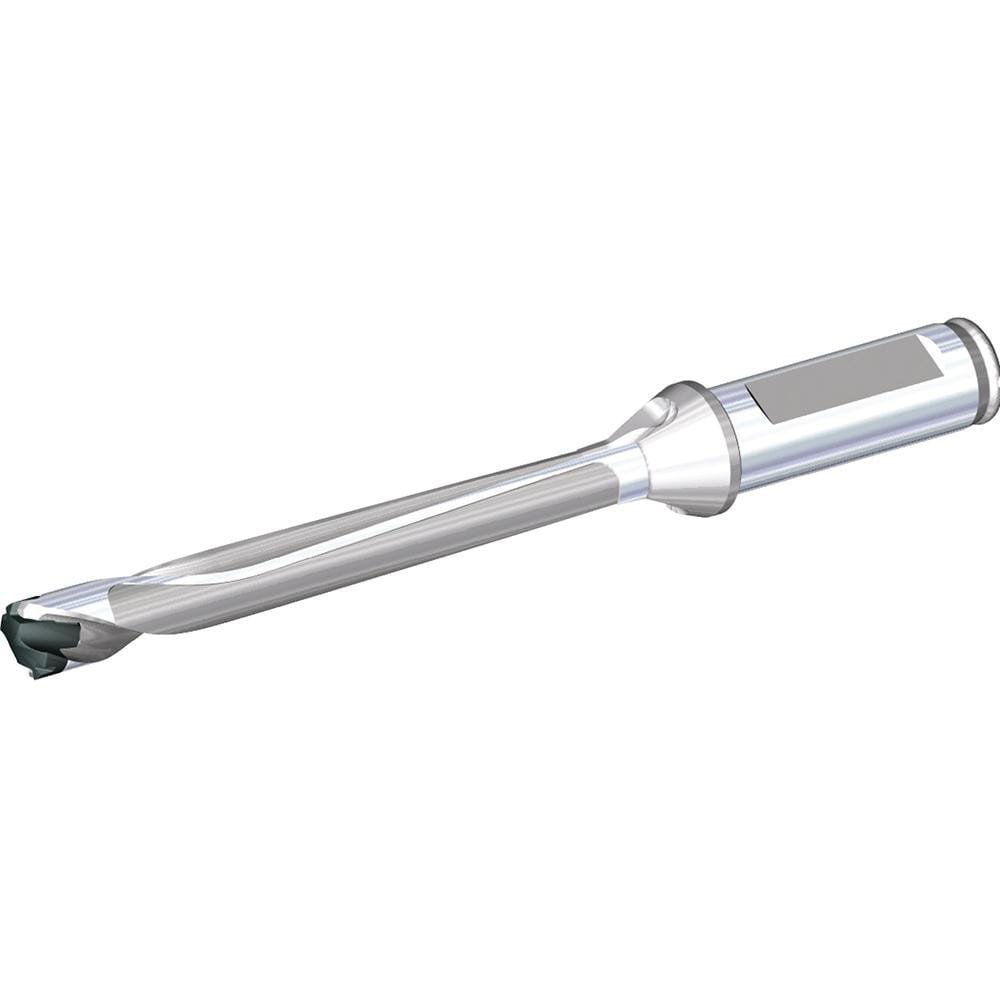

Brand: Widia / Part #: 4099064

Brand: Widia / Part #: 4099064


Item #: 90225269
Brand: Widia
Model #: 4099064

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.4528
Maximum Drill Diameter (Decimal Inch) 0.4720
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Fractional Inch) 4-5/8
Maximum Drill Depth (Decimal Inch) 4.6250
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W17
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W17
Overall Length (Decimal Inch) 6.5148
Overall Length (Inch) 6-33/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 4.4080
Body Length (Decimal Inch) 4.3909
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0732
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$292.97
