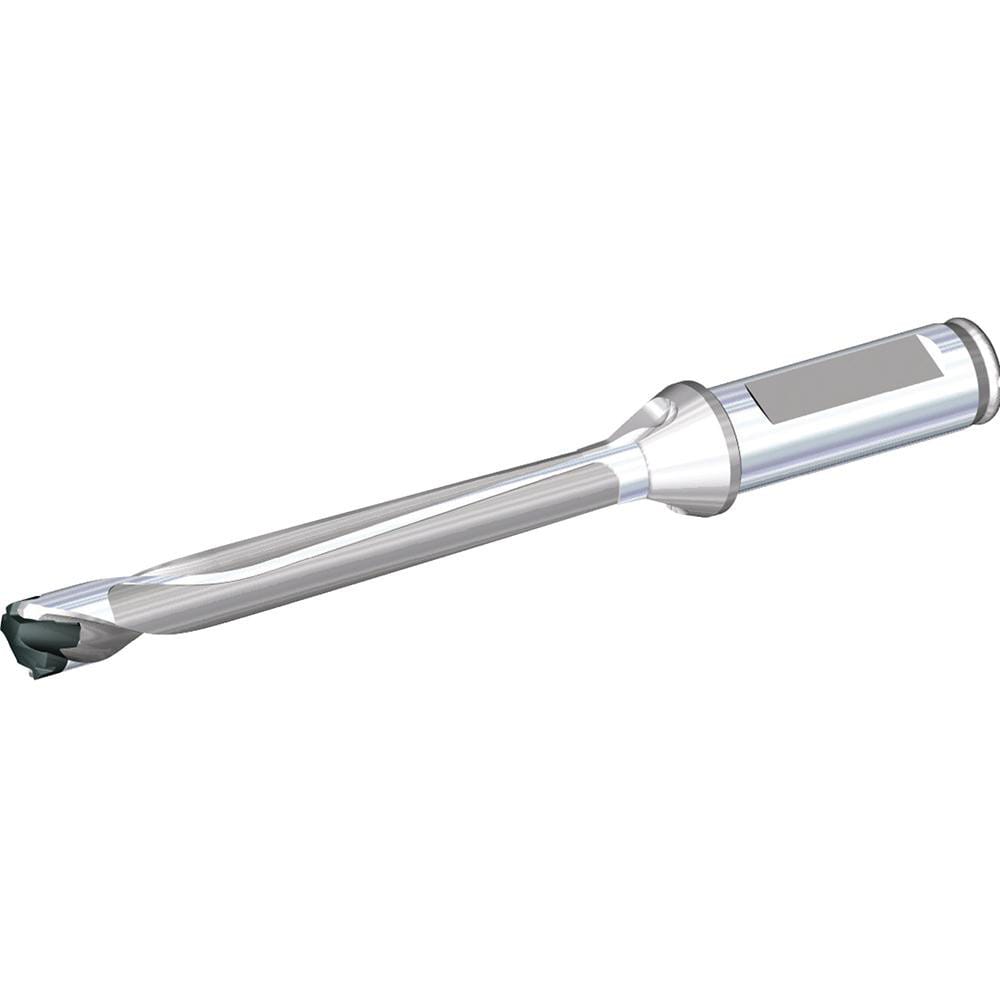

Brand: Widia / Part #: 4099062

Brand: Widia / Part #: 4099062


Item #: 90224296
Brand: Widia
Model #: 4099062

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.4134
Maximum Drill Diameter (Decimal Inch) 0.4327
Drill Depth by Diameter Ratio 8xD
Maximum Drill Depth (Decimal Inch) 3.4643
Shank Type Flatted
Insert Style TDM
Shank Diameter (Inch) 5/8
Shank Diameter (Decimal Inch) 0.6250
Insert Seat Size W15
Tool Material Steel
Compatible Insert Style TDM
Compatible Insert Size Code W15
Overall Length (Decimal Inch) 6.1398
Overall Length (Inch) 6-9/64
Series TDM1
Toolholder Style TDM1
Flute Length (Decimal Inch) 4.0335
Body Length (Decimal Inch) 4.0354
Shank Length (Decimal Inch) 1.8898
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Tip Length (Decimal Inch) 0.0764
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$292.97
