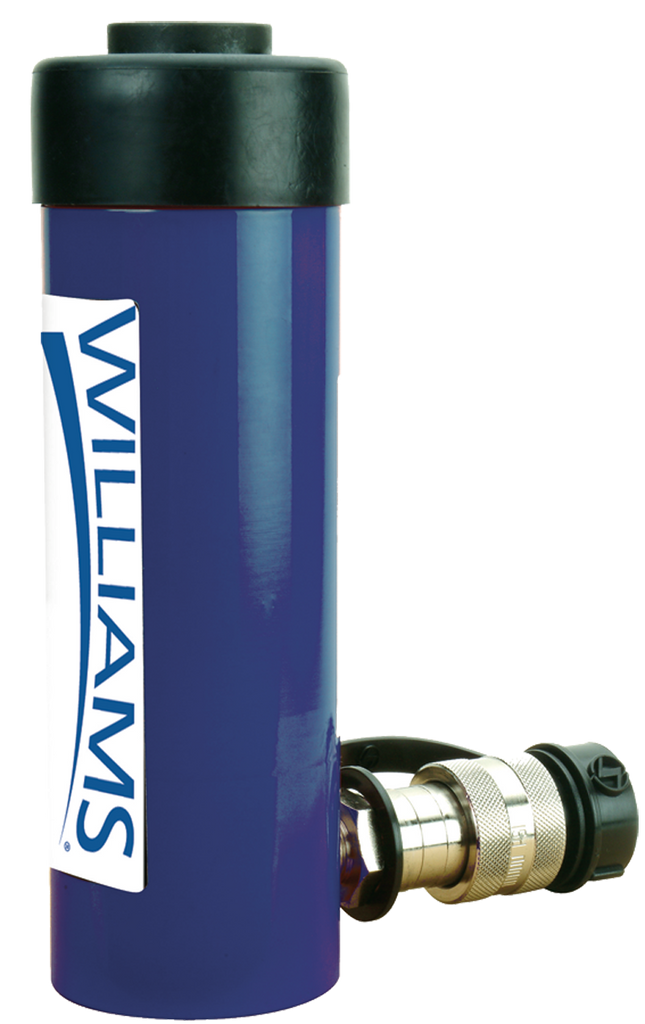

15T Hydraulic Hyd Sngl Acting Cylinder 2'' Stroke

Item #: KP306C15T02
Manufacturer: Williams
Mfg #: 9922762

Technical Specifications:
•Brand Name: Williams •Closed Height: 5.87 •Cylinder Bore Diameter: 2.00 •Cylinder Capacity (Tons): 15 •Cylinder Effective Area: 3.14 •Maximum Height: 7.88 •Outside Diameter: 2.75 •Plunger Diameter: 1.63 •Pressure Rating (PSI): 9,550 •Saddle Diameter: 1.5 •Stroke (in): 2.01

Description:
•Snap in grooved saddles •Rod wiper seals out dirt and contamination •Collar fixture thread, collar thread protector •Two base mounting holes on most models •High strength steel construction from gun drilled solid bar, solid steel cylinder body •High flow 3/8" NPTF couplers, Internal plunger threads •One piece high grade alloy bearing for side load protectionIndustrial hard chrome plated ram helps prevent rust and corrosion •Heavy duty return spring provides quicker retraction •Maximum working pressure: 10,000 psi / 700 bar

Shipping Info:
•Actual Weight - 8.6000
