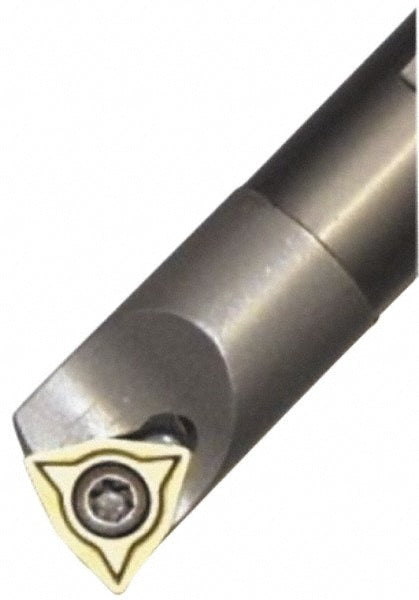

Brand: Widia / Part #: 2825324
Item #: 70735766
Brand: Widia
Model #: 2825324
Product Specifications
| Minimum Bore Diameter (Decimal Inch) | 0.5380 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Toolholder Style | QCBIW |
| Tool Material | Carbide |
| Insert Compatibility | WP.. |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 8.0000 |
| Compatible Insert Size Code | 2151 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Trigon |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.000 |
| Lead Angle | 93.000 |
| Series | QCBIW |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 8.0000 |
| Center to Cutting Edge (Decimal Inch) | 0.2730 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Multi-Use Application | External Turning; Internal Turning; Turning; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Coolant Hole Diameter (Decimal Inch) | 0.1880 |
| Coolant Hole Diameter (mm) | 4.78 |
| Insert Size | 2151 |
| Body Diameter | 0.5000 |
| Model Number | QCBIW-500-8-3R |
| Insert Style | WP.. |
| Coolant Through | Yes |
