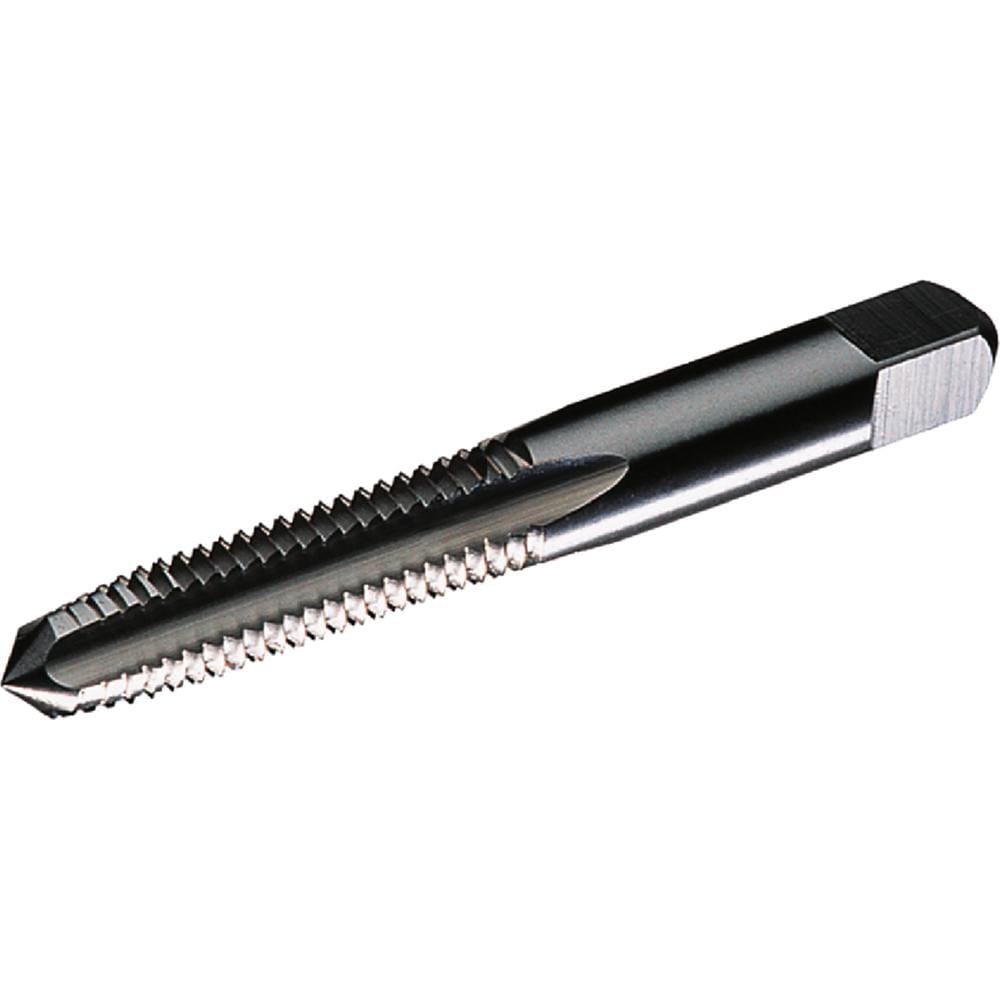

Brand: Widia / Part #: 2749284
Item #: 99822868
Brand: Widia
Model #: 2749284
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M14x1.25 |
| Thread Limit | H4 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 91.2800 |
| Thread Pitch (mm) | 1.25 |
| Thread Length (mm) | 42.07 |
| Thread Depth (mm) | 42.07 |
| Application | Metal |
| Shank Diameter (mm) | 10.9000 |
| Square Length (mm) | 12.70 |
| Series | 5353 |
| Shank Length (mm) | 0.000 |
| Shank Length (Decimal Inch) | 1.9374 |
