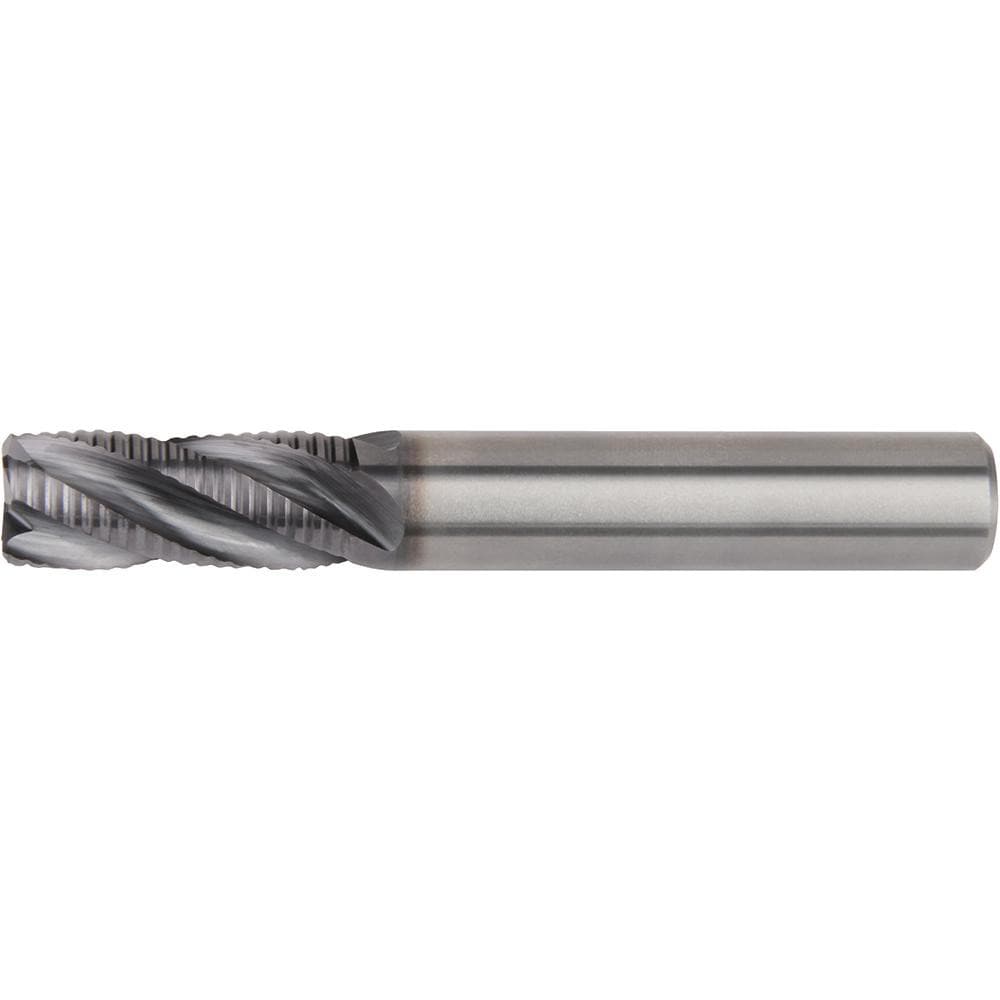

Brand: Widia / Part #: 5560717
Item #: 33984808
Brand: Widia
Model #: 5560717
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 0.50 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 104.00 |
| Length of Cut (mm) | 38.00 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Chipbreaker | Yes |
| End Type | Single |
| Chamfer Angle | 45 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Reach Length (mm) | 38.00 |
| Minimum Helix Angle | 30.00 |
| Maximum Helix Angle | 30.00 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Super Alloys & Titanium |
| Secondary Workpiece Material Code | S; H; M |
| Material Grade | WP15PE |
| Series | 4976 |
