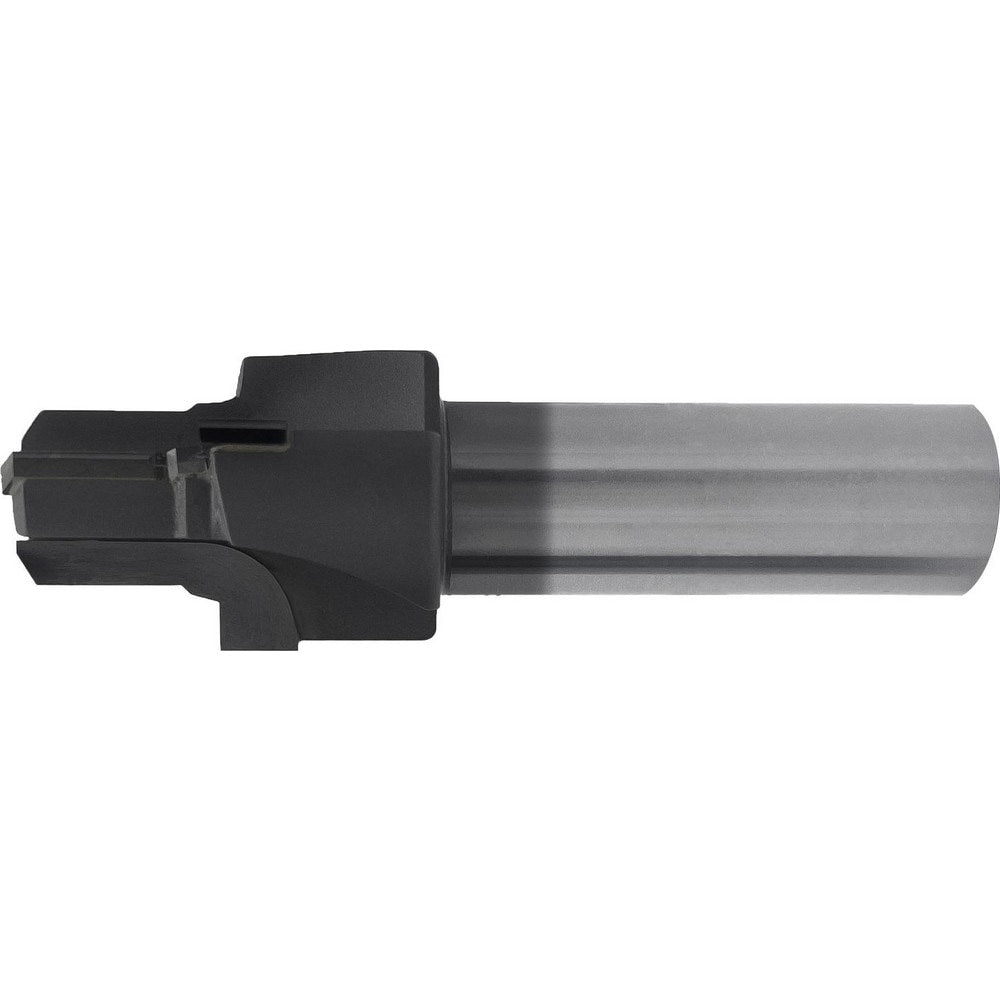

Brand: Scientific Cutting Tools / Part #: SAEJ1926-16RA
Item #: 00926923
Brand: Scientific Cutting Tools
Model #: SAEJ1926-16RA
Product Specifications
| Spotface Diameter (Decimal Inch) | 1.9350 |
| Tube Outside Diameter Compatibility (Inch) | 1 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 1-5/16-12 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 16.000 |
| Minimum Pilot Diameter (Decimal Inch) | 1.2290 |
| Pilot Length | 0.7790 |
| Overall Length (Inch) | 4-1/4 |
| Number Of Flutes | 3 |
| Standards | SAEJ1926; MS16142 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Standard |
| Seal Angle | 15 |
| Thread Type | UN |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1 |
| Shank Length (Decimal Inch) | 2.2500 |
| Maximum Pilot Diameter (Decimal Inch) | 1.4005 |
| Head Length (Decimal Inch) | 2.0000 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
