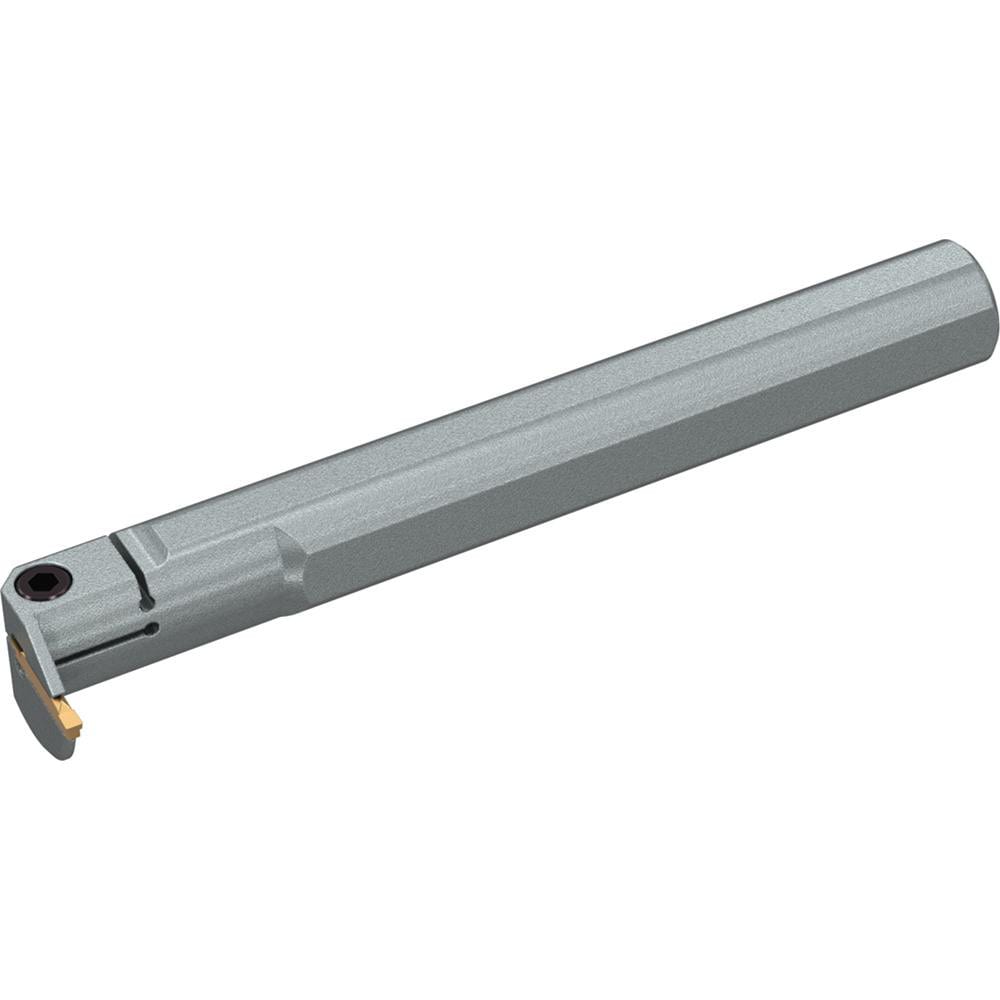

Brand: Widia / Part #: 5423843

Brand: Widia / Part #: 5423843


Item #: 15075559
Brand: Widia
Model #: 5423843

Product Specifications

Internal or External Internal
Toolholder Type Internal Grooving
Insert Seat Size 5
Hand of Holder Right Hand
Cutting Direction Right Hand
Maximum Depth of Cut (Decimal Inch) 0.8660
Minimum Groove Width (Decimal Inch) 0.1880
Toolholder Style WMTER
Maximum Groove Width (Decimal Inch) 0.1880
Insert Holding Method Clamp
Insert Compatibility WMTS188I5P03PT
Compatible Insert Size Code 5
Shank Width/Diameter (Decimal Inch) 1.5000
Shank Height (Decimal Inch) 0.0000
Series WMT
Shank Length (Decimal Inch) 8.8500
Overall Length (Decimal Inch) 12.0000
Multi-use Tool No
Cutting Tool Application Grooving
Back of Bar to Cutting Edge (Decimal Inch) 2.0100
Center to Cutting Edge (Decimal Inch) 1.2600
Minimum Hole Diameter (Decimal Inch) 2.1300
Head Length (Decimal Inch) 3.1500
Primary Workpiece Material Universal
Vibration Dampening No
Coolant Hole Thread Size 1/4-18 NPT
Coolant Hole Diameter (Decimal Inch) 0.2500
Maximum Bore Depth (Decimal Inch) 3.1500
Mount Type Shank
Manufacturers Catalog Number A24TWMTER0522N
Toolholder Material Steel
Insert Hand Neutral
Complete Insert Compatibility WMTS188I5P03PT
Minimum Bore Diameter (Decimal Inch) 2.1300
Coolant Through Yes
$322.21
