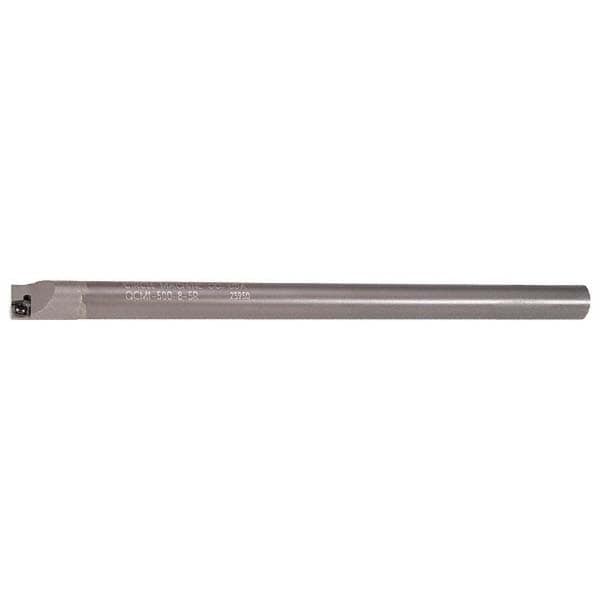

Brand: Widia / Part #: 2825117
Item #: 70731559
Brand: Widia
Model #: 2825117
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 2 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0650 |
| Minimum Groove Width (Decimal Inch) | 0.0300 |
| Toolholder Style | QCMI |
| Maximum Groove Width (Decimal Inch) | 0.0600 |
| Insert Holding Method | Screw |
| Insert Compatibility | CPHB21205 |
| Compatible Insert Size Code | 212. |
| Shank Width/Diameter (Decimal Inch) | 0.3750 |
| Shank Height (Decimal Inch) | 0.3750 |
| Series | QCMI |
| Shank Length (mm) | 133.500 |
| Shank Length (Decimal Inch) | 5.2560 |
| Overall Length (Decimal Inch) | 6.0000 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Turning; Boring |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4050 |
| Center to Cutting Edge (Decimal Inch) | 0.2180 |
| Minimum Hole Diameter (Decimal Inch) | 0.4200 |
| Head Length (Decimal Inch) | 0.7440 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M; N |
| Multi-Use Application | Grooving; Threading; Boring |
| Coolant Hole Diameter (Decimal Inch) | 0.1250 |
| Maximum Bore Depth (Decimal Inch) | 6.0000 |
| Mount Type | Shank |
| Manufacturers Catalog Number | QCMI37565R |
| Toolholder Material | Carbide |
| Insert Hand | Right Hand |
| Complete Insert Compatibility | CPHB21205 |
| Minimum Bore Diameter (Decimal Inch) | 0.4200 |
| Number of Inserts Included in Order | 1 |
| Coolant Through | Yes |
